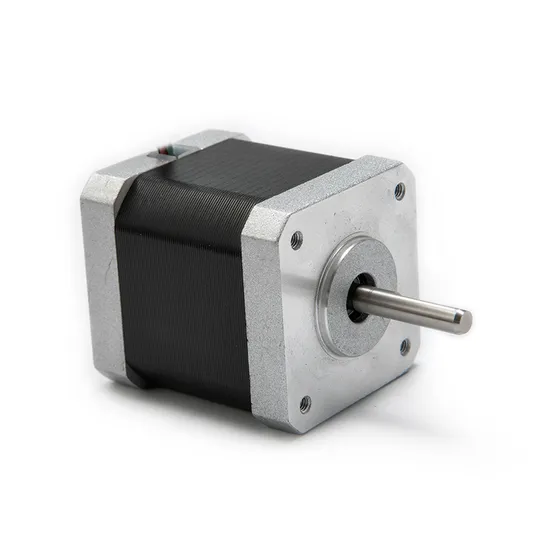

1.8 Degree 2 Phase NEMA 17 Electric Hybrid Stepper Motor for CNC Milling Machine
| US$1.00-50.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
NEMA 17 series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control
Number of Poles
4
Operate Mode
Three-Phase Six-Step
Type
Planetary BLDC
Certification
CE
Brand
GS
Warranty
1 Year
Sample
Available
Step Angle Accuracy
1.8°
Insulation Class
B (F Available)
Shaft Type
Round, Flat, Pulley, Gear...
Transport Package
Plastic Bag and Carton Packing
Specification
NEMA17 42*42mm
Trademark
GS
Origin
Zhejiang, China (Mainland)
HS Code
85013100
Production Capacity
30000PCS Per Month
Product Description
NEMA17 42mm Micro Hybrid Stepper Motor for CNC 3D Printer
Characteristics1. Precise position control.2. Speed control function.3. Forward/reverse rotation, emergency stop and lock function.4. High-precision position control at low speed.5. Long service life.
Technical Specification
| Item | Specifications |
| Steps/cycle | 200 |
| Step Angle Accuracy | 1.8°±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºC Max (rated current, 2-phase on) |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Insulation Class | Class B (Class F is available) |
| Protection Grade | IP40 |
Stepper Motor Parameters
| Model | Poles | Current | Resistance | Inductance | Holding Torque | Detent Torque | Weight | Length (L) |
| A | Ω | mH | Nm | mNm | KG | mm | ||
| 42BYG34-4040 | 2 | 0.4 | 30 | 51 | 0.25 | 12 | 0.22 | 34 |
| 42BYG34-4065 | 2 | 0.65 | 8.8 | 15.5 | 0.23 | |||
| 42BYG34-4100 | 2 | 1 | 4.2 | 7.5 | 0.24 | |||
| 42BYG34-4150 | 2 | 1.5 | 1.8 | 3 | 0.23 | |||
| 42BYG34-6040 | 4 | 0.4 | 31 | 27 | 0.18 | |||
| 42BYG34-6085 | 4 | 0.85 | 5.1 | 4.5 | 0.16 | |||
| 42BYG34-6120 | 4 | 1.2 | 2.9 | 2.5 | 0.17 | |||
| 42BYG40-4050 | 2 | 0.5 | 25 | 50 | 0.4 | 18 | 0.25 | 40 |
| 42BYG40-4085 | 2 | 0.85 | 6.6 | 11 | 0.36 | |||
| 42BYG40-4100 | 2 | 1 | 5 | 11.2 | 0.4 | |||
| 42BYG40-4150 | 2 | 1.5 | 0.75 | 2 | 0.4 | |||
| 42BYG40-6040 | 4 | 0.4 | 35 | 35 | 0.3 | |||
| 42BYG40-6085 | 4 | 0.85 | 6 | 6.8 | 0.27 | |||
| 42BYG40-6130 | 4 | 1.3 | 2.5 | 2.8 | 0.27 | |||
| 42BYG48-4040 | 2 | 0.4 | 30 | 45 | 0.46 | 24 | 0.35 | 48 |
| 42BYG48-4085 | 2 | 0.85 | 6.6 | 11 | 0.45 | |||
| 42BYG48-4100 | 2 | 1 | 7.3 | 12 | 0.5 | |||
| 42BYG48-4150 | 2 | 1.5 | 2 | 3.85 | 0.5 | |||
| 42BYG48-6040 | 4 | 0.4 | 29 | 33 | 0.38 | |||
| 42BYG48-6080 | 4 | 0.8 | 7.6 | 8.6 | 0.36 | |||
| 42BYG48-6120 | 4 | 1.2 | 3.3 | 3.2 | 0.35 | |||
| 42BYG48-6200 | 4 | 2 | 1.3 | 1.4 | 0.38 | |||
| 42BYG60-4100 | 2 | 1 | 5.4 | 14.1 | 0.6 | 28 | 0.58 | 60 |
| 42BYG60-4150 | 2 | 1.5 | 2.8 | 7.2 | 0.6 | |||
| 42BYG60-4200 | 2 | 2 | 1.3 | 3.3 | 0.6 | |||
| 42BYG63-4100 | 2 | 1 | 5.6 | 14.6 | 0.65 | 30 | 0.6 | 63 |
| 42BYG63-4150 | 2 | 1.5 | 3 | 7.7 | 0.65 | |||
| 42BYG63-4200 | 2 | 2 | 1.8 | 3.8 | 0.65 |
Drawing
View Of Item
