Hsg Laser Factory Copper Plate / Sheet Steel Laser Cutting 1500W 2000W 3000W Open Type CNC Fiber Laser Cutting Machine with Double Drive

Product Description

HSG Laser Factory Copper Plate Laser Cutting 1500W 2000W 3000W Open Type Sheet Steel CNC Fiber Laser Cutting Machine with Double Drive
Product Description
Introduction
Although the power of G3015C fiber laser cutting machine is 1500W-12000w
Application
Applicable materials: stainless steel and aluminum of 0.5-8mm, carbon steel of 0.5-16mm, brass of 0.5-6mm, copper of 0.5-4mm, galvanized plates, cold-rolled sheets and more.
Application industry: The G3015C laser cutter is widely used for external processing of metal sheets, home decorations (window grilles, laser-cut screen door), elevators, aerospace components,instruments and more.
.* G3015C is only 4900mm*2250mm, equaling to a large SUV and allows to be put into production in 1 day at the soonest.
* Seven models for selection, positioning accuracy up to ±0.03mm/m, processing format ranging from 3000*1500mm to 8000*2500mm, loading weight of platform 4000kg
Product Parameters

Machine Parameters
Model	Power	Working Area (L*W)	X/Y-axis Positioning Accuracy	X/Y-axis Repositiong Accuracy	No-load Speed	Loading Weight of Platforms	Overall Dimensios (L*W*H)
G3015C III	1500W-6000W	3000*1500mm	±0.03mm/m	±0.03mm	140m/min	700kg	4900*2250*1700mm
G4015C III	1500W-6000W	4000*1500mm	±0.03mm/m	±0.03mm	140m/min	1050kg	5560*2250*1700mm
G4020C III	1500W-6000W	4000*2000mm	±0.03mm/m	±0.03mm	140m/min	1400kg	6015*3300*1700mm
G6015C III	3000W-6000W	6000*1500mm	±0.03mm/m	±0.03mm	140m/min	1500kg	8300*2800*1700mm
G6020C III	3000W-6000W	6000*2000mm	±0.03mm/m	±0.03mm	140m/min	2000kg	8300*3300*1700mm
G6025C III	3000W-6000W	6000*2500mm	±0.03mm/m	±0.03mm	120m/min	2500kg	8300*3760*1700mm
G8025C III	6000W-12000W	8000*2500mm	±0.03mm/m	±0.03mm	120m/min	3200kg	10500*3600*1700mm
G6025C III-H	6000W-12000W	6000*2500mm	±0.03mm/m	±0.03mm	100m/min	4700kg	8600*3800*1700mm
G8025C III-H	6000W-12000W	8000*2500mm	±0.03mm/m	±0.03mm	100m/min	6300kg	11000*3800*1700mm
G12025C III-H	6000W-12000W	12000*2500mm	±0.03mm/m	±0.03mm	100m/min	3200kg	15300*3800*1700mm

Detailed Photos
Ipg Raycus Max CNC desktop Fiber Laser Cutting Machine for Carbon Stainless Steel Sheet Aluminum with 1500 watt 2000/3000/6000W/12000W Laser Cutter Metal
1. Core Components
Its dual servo motors can run at rotating speed of up to 3750r/min.
We import speed reducer and gear wheels from German WITTENSTEIN alpha.

2. Alpha T Bus CNC System
Alpha T can make data transmission via a network cable.
Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST nesting software
* Bus refers to data transmission mode via on-site bus control system.
3. Autofocus Cutting Head
* Autofocus accuracy ±0.01mm
* Self water-cooling mode
* Take control of gas flow to enable mirror-like surface cutting
* Feel surroundings and lift itself up to avoid obstacle
* Anti-pollution design

4. Extruded Aluminum Beam
The aluminum alloy is adopted. Our beam is designed as honeycomb anti-compression structure and made by using extrusion molding process.

5. Carbon Steel Welded Machine Bed
* 20 years using without deformation
* High-quality carbon steel adopted, with less impurity, less heat absorption and good rigidity

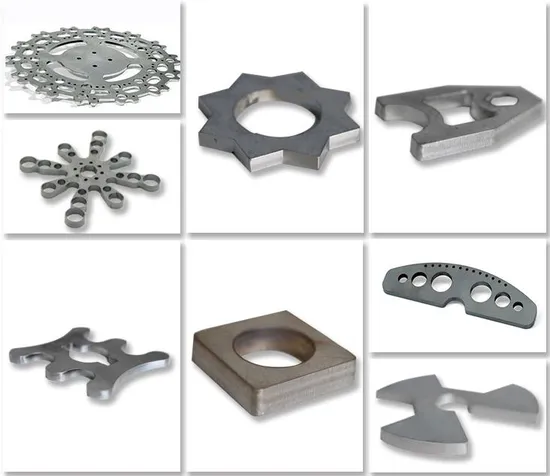

6. GC III performs well in sheet cutting quality and we will carefully check the entire machine and all components before delivery to you. It is popular globally and has been highly praised by purchasers since its first launch to market. Cutting Sample
* Customizable size: 4m×2m, 6m×2m, 8m×2m.
** We offer lasers in a variety of powers. The material and thickness levels to be cut directly depend on the laser power.

Compatible Materials
Stainless steel Carbon steel Galvanized steel Cold rolled steel Titanium Electrolytic steel
Customer Case Company Profile
HSG ® LASER COMPANY HSG Laser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment, is dedicated to serve global customers with intelligent metal forming solutions.
RFQ
Q1:what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
If necessary, our engineers can make on-site debugging, trianing and maintenance.
Q3: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials. Metal/ Steel/ Aluminum/ Copper/ Iron/ Carbon Steel/ Brass/ Stainless Steel/ Galvanized Iron/Bronze Plate, etc
3)Maximum cutting thickness. Different laser power with different cutting ability.
