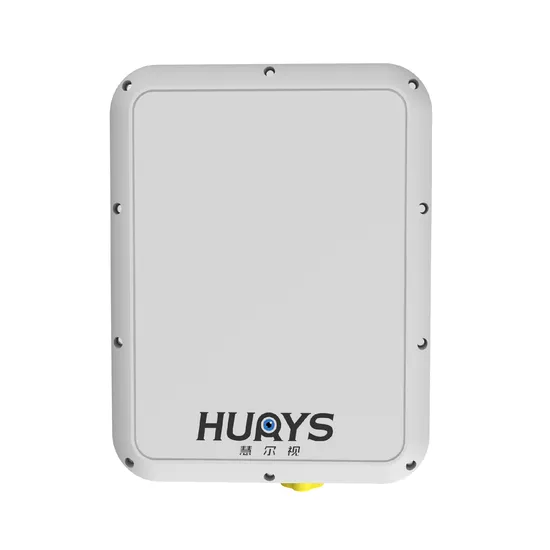

80GHz Rte P19 High-Precision 4D Imaging Wide Area Security Radar for Targets Intrusion Detection

Product Description

RTE P19 4D imaging security radar adopts a new high-resolution 4D imaging millimeter-wave radar sensing front end. While maintaining the original 3D millimeter-wave radar's all-weather and all-day working advantages, it has greatly improved the detection distance, resolution, number of point clouds and stability of target trajectory. It meets the high sensitivity, high precision and perception requirements of intrusion targets in key places such as railway lines, dams, reservoirs, power plants, and airports, and realizes all-weather and all-day remote monitoring and active early warning to prevent problems before they occur.
Product Parameters

No	Specifications	Parameters
1	Frequency band	80GHz
2	Detection range	Vertically: 150 meters for pedestrians, 200 meters for bicycles, 250 meters for electric vehicles/motorcycles, and 300 meters for passenger cars; Horizontally: 50 meters for pedestrians, 60 meters for bicycles, 100 meters for electric vehicles/motorcycles, and 120 meters for passenger cars.
3	Max number of detected targets	128
4	Measuring cycle	50ms
5	Range accuracy	±0.2m
6	Range resolution	0.25m
7	Speed accuracy	±0.1km/h
8	Velocity resolution	0.35km/h
9	Speed range	-250km/h~+250km/h
10	Angular resolution	1.2°(Azimuth) , 2.3°(Elevation)
11	Horizontally FOV	120°
12	Vertically FOV	28°(Near range)/8°(Far range)
13	Working temperature	-40ºC~70ºC
14	Working voltage	DC 24V
15	Working humidity	0~95%
16	Working power consumption	≤30 W
17	Installation height	1.5~5 meters
18	Detection targets	Moving pedestrians, large animals, and vehicles
19	Output Data	Target lD, target coordinates, target speed, alarm time

Installation Instructions The RTE P19 radar is mounted on a pole through a three-dimensional universal joint bracket and a clamp (preferably fixed on a vertical pole). The installation height supports 1.5 to 5 meters, and the recommended installation height is 2 to 3 meters and at eye level (note that it is relative to the ground of the detected area).
Of course, it also depends on the specific situation on site. For example, when installing in the rail area of a railway line, there is a maximum installation height limit due to the presence of high-voltage cables, which is generally not higher than 2 meters. However, since there are no obstacles such as vegetation in the rail area, the installation height is not higher than 2 meters and does not affect the detection of pedestrians and large animals invading the rail area.
The installation height and pitch angle affect the detection range and the size of the near blind area. It is not that the higher the radar installation height is, the better. What is more important is to reasonably select the installation location and height based on the area to be detected, the vegetation, protrusions, buildings, etc. in the area to ensure that the radar field of view is not blocked. In particular, if it is necessary to detect people in the woods, it should be noted that the lush branches and leaves in summer will affect the radar's detection of moving targets in the woods. The radar installation height needs to be appropriately lowered to avoid obstruction by branches, and branches in important monitoring areas need to be trimmed.
3D Universal Joint Bracket
Radar installation diagram
Our Advantages Support 4D high-resolution imaging point cloud output to achieve more accurate target coordinate measurement and resolution of different adjacent targets; Supports 12 transmitting channels, 16 receiving channels, and supports up to 192 virtual channels; Pulse compression radar modulation technology, higher signal-to-noise ratio to achieve more accurate and continuous trajectory tracking; Larger area detection capability: vertically, detection of pedestrians 150 meters, bicycles 200 meters, electric vehicles/motorcycles 250 meters, passenger cars 300 meters. Horizontally, detection of pedestrians 50 meters, bicycles 60 meters, electric vehicles/motorcycles 100 meters, passenger cars 120 meters; Supports identification of whether the moving target is a normal train to avoid false reporting as an intrusion target; Support decimeter-level high-precision distance detection; Support high-precision speed detection; Support millisecond-level delay output, data refresh frequency up to 20Hz; Support NTP time calibration and manual time calibration to achieve high-precision time synchronization; It has the ability to work all day and in all weather conditions and is not affected by light, rain, snow, fog, haze and other weather conditions. Applications
