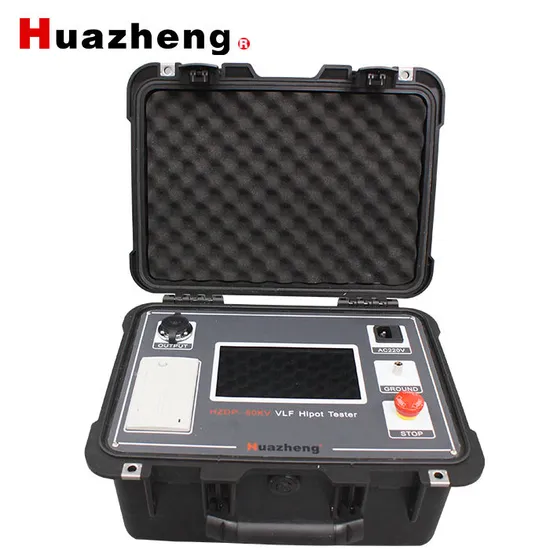

2025 Honest Quality Very Low Frequency Electrical Vlf Cable Tester

Product Description

2025 Honest Quality Very Low Frequency Electrical Vlf Cable Tester
Product Description Overview
High voltage withstand test of electrical equipment is one of the most important items specified in insulation preventive test.
The withstand voltage test can be divided into ac withstand voltage test and dc withstand voltage test. The ac withstand voltage test can be divided into power frequency, frequency conversion and 0.1hz VLF test technology, of which 0.1hz ultra-low frequency technology is the latest technology recommended by the current international electrotechnical commission. Our company's new generation of ultra-low frequency and high voltage generator is the core product independently developed with the latest American technology. It adopts 7-inch touch screen, the latest arm7 single chip microcomputer, high-speed ad acquisition circuit, and is equipped with background management software. It overcomes many shortcomings of domestic similar products (see table 1), and its cost performance is much higher than that of similar imported products. It is especially suitable for withstand voltage test of electrical equipment with large insulation equivalent capacitance (such as power cable, power capacitor, large and medium-sized generator and motor, etc.), which conforms to the national standard of electric power industry, general technical conditions for ultra-low frequency and high voltage generator (d) newly issued in 2004 l / t849.4-2004.
Technical Parameters Of Series Products1. Output rated voltage: See table 3
2. Output frequency:0.1Hz,0.05Hz,0.02Hz,0.01Hz
3. Carrying capacity: 0.1Hz max 0.5µF
0.05Hz max 1.1µF
0.02Hz max 2.2µF
0.01Hz max 5.5µF
4. Measurement accuracy:3%
5. Voltage positive, negative peak error:≤3%±3kV
6. Voltage waveform distortion degree:≤5%
7. Conditions of use: indoor, outdoor; temperature:-10ºC~+40ºC;humidity:≤85%RH
8. Power supply fuse: See table 3
9. Power Supply: Voltage 220V±5%,50±5Hz
Note: If the portable generator is used for power supply, the generator output voltage and frequency are required to be stable (generally, the power is greater than 3kW, the frequency is 50Hz, and the voltage is 220V±5%
The electrical capacity of the subject shall not exceed the maximum rated electrical capacity of the instrument, and the value is shown in the table

Model	Rated voltage	Carrying capacity	Power source Safety tube	Product structure and weight
30/1.1	30kV (Peak value)	0.1Hz,≤0.5µF	10A	Controller:4kg Voltage booster:20kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF
40/1.1	40kV (Peak value)	0.1Hz,≤0.5µF	10A	Controller:4kg Voltage booster:20kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF
50/1.1	50kV (Peak value)	0.1Hz,≤0.5µF	15A	Controller:4kg Voltage booster:40kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF
60/1.1	60kV (Peak value)	0.1Hz,≤0.5µF	15A	Controller:4kg Voltage booster:50kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF
80/1.1	80kV (Peak value)	0.1Hz,≤0.5µF	15A	Controller:4kg Voltage booster:50kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF
90/1.1	90kV (Peak value)	0.1Hz,≤0.5µF	15A	Controller:4kg Voltage booster:55kg
		0.05Hz,≤1.1µF
		0.02Hz,≤2.2µF
		0.01Hz,≤5.5µF

Detailed Photos
Company Profile Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on. Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
