Double End Grinding Testing Equipment (SCM-200)
| US$1.00-2,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SCM-200
Automation
Automatic
Precision
High Precision
Application
Concrete Curb, Granite, Marble
Type for Grinding Machine
Disc Grinding Machine
Grinding Method
Wet Grind
Condition
New
Milling Wheel Specification
C200×c32×40mm
Weight
600kg
Transport Package
Wooden Case
Specification
1400× 1350× 1200mm
Origin
China
HS Code
84642090
Production Capacity
30 Sets/Month
Product Description

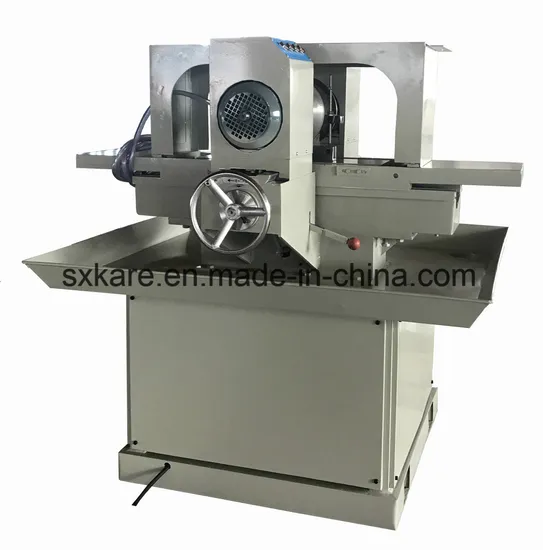

SCM-200 Double End Grinding Testing EquipmentThe SCM-200 Double End Grinding Testing equipment is used for milling the double ends of the specimen after cutting and making the high precision specimen. There are C200 diamond milling wheels fixed on the both motion milling heads. Fix the specimen on the work table. To and fro when operating. The milling head could be used automatically, or by manual forward to grinding. The automatic forward speed is adjustable.
| Grinding range | ≤150×150×150mm |
| Milling wheel specification | C200×C32×40mm |
| Grinding motion head power | 1.1kW×2 |
| Error | ≤0.05mm |
| Sample accuracy | within 100mm of depth of parallelism, planeness, verticality |
| Outline dimension | 1400×1350×1200mm |
| Weight | 600Kg |
