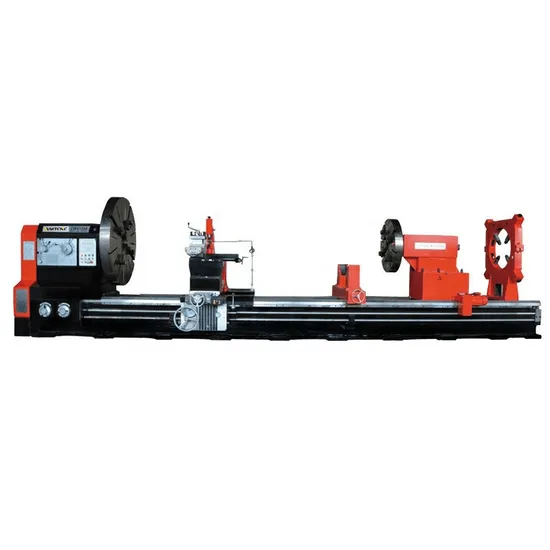

CW61200 heavy conventional metal lathe machine with tailstock chuck
Basic Info.
Model NO.
CW61200
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
105mm
Max. Swing Over Bed
2000mm
Distance Between Centers
850-11850mm
Machine
Lathe
Voltage
380V
Clour
Customer Appoint
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
20 Sets Per Month
Packaging & Delivery
Package Size
125.00cm * 75.00cm * 86.00cm
Package Gross Weight
500.000kg
Product Description
FeaturesThis heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
Main specification :
| Specification | CW61125 | CW61160 | CW61180 | CW61200 | CW61220 |
| Swing over bed | 1250mm | 1600mm | 1800mm | 2000mm | 2200mm |
| Bed width | 755mm | 755/1100mm | 1100mm | ||
| Workpiece length | 1500/ 3000/ 5000/ 6000/ 8000/ 15000mm | ||||
| Swing over toolpost | 865mm | 1200mm | 1400mm | 1600mm | 1800mm |
| Max. turning length | 1300/ 2800/ 4800/5800/7800/14800mm | ||||
| Toolpost feed kinds each spindle rotate | 56 kinds | ||||
| Toolpost cross feed range each spindle rotate | 0.1-12mm/r | ||||
| Toolpost longitudinal feed range each spindle rotate | 0.05-6mm/r | ||||
| Upper toolpost | 0.025-3mm/r | ||||
| Metric thread | 43 kinds 1-20mm | ||||
| Inch thread | 29 kinds 28-3/8 teeth / inch | ||||
| Module thread | 45kinds 0.5-60mm | ||||
| Pitch thread | 25 kinds 1-56mm | ||||
| Spindle bore | 130mm | ||||
| Spindle front taper | Metric 140 | ||||
| Spindle speed steps and range forward | 21 kinds 2-200r/min | ||||
| Reverse | 12 kinds 2.24-178 r/min | ||||
| Max.section of tool | 45×45mm | ||||
| Toolpost longitudinal travel | 630mm | ||||
| Upper toolpost travel | 300mm | ||||
| Toolpost rapid movement Longitudinal/Cross/Upper | 3470/1870/935mm/min | ||||
| Center sleeve dia and travel | 160×300mm | 210×300mm | |||
| Tailstock taper | MT6 | Metric 80 | |||
| Tailstock longitudinal movement | ±25 | ||||
| Main motor | Y180L-4 22KW | ||||
| Main transsion V belt specification | 2134C 2235C 2540C | 2540C 2880C | |||
| Carriage rapid motor | JC02-21-2-1.5KW | ||||
| Coolant pump | JCB-45 0.15KW | ||||
| Coolant pump flow | 45L/min | ||||
| 4-jaw chuck | 1000/1250mm | 1250/1400mm | |||
| Steady rest | 50-470mm | 50-600mm | |||
| Follow rest | 50-220mm | ||||
Standard Accessoires:
4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part
