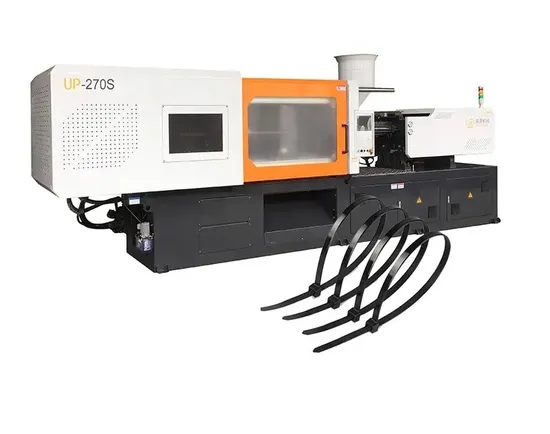

Nylon Cable Tie Plastic Injection Molding Machines
| US$23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-230
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
84771090
Production Capacity
500sets Per Year
Product Description
China servo injection molding machine.
A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer
B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.
E. Mold opening stroke and maximum opening distance.plastic injection machine
| Technical Parameters | Model UP-230T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 461 | 558 | 664 |
| Injection weight (g) | 415 | 502 | 598 |
| injection pressure (Mpa) | 169 | 142 | 121 |
| Screw speed (rmp) | 155 | ||
| Clamping Unit | |||
| Clamping force (KN) | 2300 | ||
| Open stroke (mm) | 475 | ||
| Max Mold height (mm) | 550 | ||
| Min Mold height (mm) | 220 | ||
| Space between tie bars(mm) | 530*530 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 135 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 22(21.2) | ||
| Heating power (KW) | 14.2 | ||
| Machine dimension (M) | 5.8*1.55*2.15 | ||
| Machine weight (T) | 6.3 | ||
| Oiltank cubage (L) | 350 | ||
FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate
