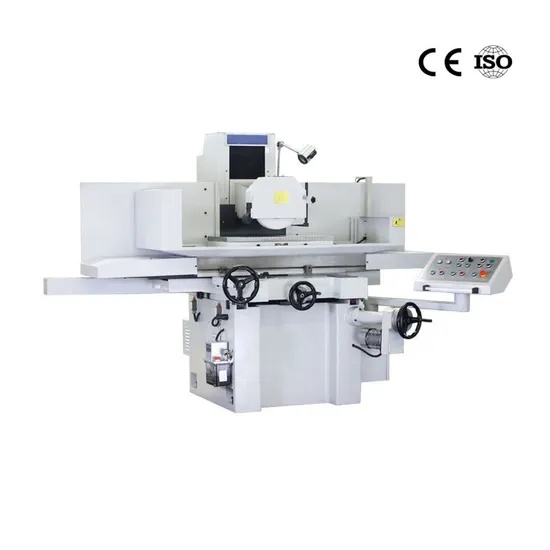

Senmo Surface Grinding Machine Grinder Sga4080ah/Ahr/Ahd
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
SGA4080AH/AHR/AHD
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84601910
Product Description
| Saddle Moving Surface Grinding Machine SGA4080 Feature |
| ·AH: Hydraulic longitudinal feed, Manual cross and vertical feed |
| ·AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed |
| ·AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed |
| Specifications | SGA4080AH | SGA4080AHR | SGA4080AHD |
| Table size | 406x813mm | 406x813mm | 406x813mm |
| Magnetic chuck size | 400x800mm | 400x800mm | 400x800mm |
| Max. distance from spindle to table | 580mm | 580mm | 580mm |
| Table cross travel | 450mm | 450mm | 450mm |
| Table longitudinal travel | 910mm | 910mm | 910mm |
| Max. load capacity of table (include chuck) | 500kg | 500kg | 500kg |
| Speed of table longitudinal movement | 5-25m/min | 5-25m/min | 5-25m/min |
| Cross motion | |||
| Intermittent feed rate | 0.1-8mm/t | 0.1-8mm/t | 0.1-8mm/t |
| Rapid speed | 990mm/min | 990mm/min | 990mm/min |
| Feed of handwheel | 0.02mm/div | 0.02mm/div | 0.02mm/div |
| Vertical motion | |||
| Auto down feed rate | / | / | 0.005-0.5mm/t |
| Rapid down speed | / | 650 | 480 |
| Feed of handwheel | 0.005mm/div | 0.005mm/div | 0.005mm/div |
| Spindle rotating speed | 1450r/min (50HZ), 1750r/min (60HZ) | ||
| Grind wheel size | 350x40x127mm | ||
| Spindle motor power | 4kW | ||
| Floor space | 3600x2400x1900mm | ||
| G.W. | 3400kg | ||
| Packing size | 285x227x221cm | ||
| Standard Accessories | Optional Accessories | |
| Electrical magnetic chuck | Luxurious splashing board | |
| Coolant tank | Parallel wheel dresser | |
| Balancing arbor | Oil tank guard | |
| Wheel flange and wheel | Digital readout for Y/Z axis | |
| Wheel extractor | Balancing stand | |
| Standard dressing stand(not include diamond pen) | Include diamond pen | |
| Leveling wedge | Magnetic separator apparatus | |
| Tools and tool box | Magnetic separator and paper filter coolant tank | |
| Paper filter apparatus | ||
| Dust collector |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
