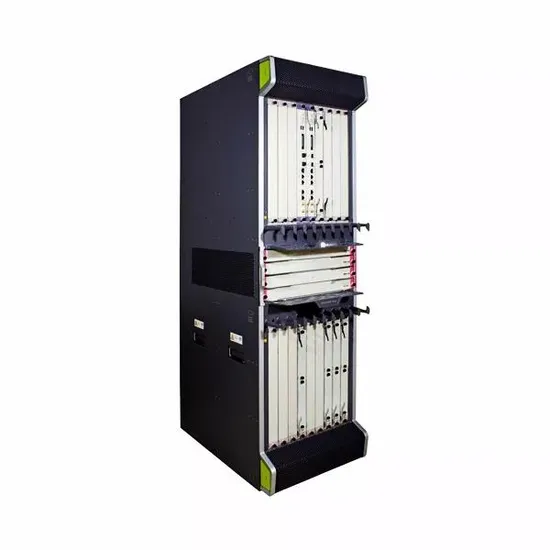

NE40E-X8A 02350AFW 02350AFX 02351CCF 02351TWY enterprise router

Product Description

Product Description

The HW NetEngine40E Universal Service Router (NE40E) is a HW highend network product. It is deployed at the edge of IP backbone networks, IP metropolitan area networks (MANs), and other large-scale IP networks. The device works with core routers to provide a complete and hierarchical IP network solution.
The NE40E runs on the Versatile Routing Platform (VRP) operating system developed by HW and uses the hardware-based forwarding and non-blocking data switching technology. The NE40E has the following features: Carrier-class reliability, line-rate forwarding capability, excellent expansibility, well-designed quality of service (QoS) mechanism, and strong serviceprocessing capability Powerful service access and aggregation capabilities, flexible configurations with various features, such as Layer 2 virtual private network (L2VPN), Layer 3 virtual private network (L3VPN), multicast, multicast VPN (MVPN), Multiprotocol Label Switching (MPLS) Traffic Engineering (TE), and QoS, to ensure carrier-class service transmission reliability .Support for IPv6 and smooth transition from IPv4 to IPv6 The NE40E can be flexibly deployed at the edge or core of IP/MPLS networks to simplify the network structure and provide an extensive range of services and reliable service quality. The NE40E is driving IP/MPLS bearer networks to develop greater broadband capacities and to become more secure, intelligent, and serviceoriented. The NE40E can be flexibly deployed at the edge or core of IP/MPLS networks to simplify the network structure and provide an extensive range of services and reliable service quality. The NE40E is driving IP/MPLS bearer networks to develop greater broadband capacities and to become more secure, intelligent, and serviceoriented. The NE40E series routers include the NE40E-X16, NE40E-X16A, NE40E-X8, and NE40E-X8A, NE40E-X3, NE40E-X3A, satisfying the requirements for networks of various scales. Detailed Photos

Product Parameters

Wide [mm]	442 mm
Depth [mm]	650 mm
Height [mm]	930 mm
Chassis height [U]	21 U
Weight without packaging [kg(lb)]	78.9 kg (173.94 lb)
Weight without packaging (full configuration) [kg(lb)]	[400G bundle] 186.1 kg (410.28 lb) [1T bundle] 209 kg (460.77 lb)
Typical power consumption (with configuration) [W]	4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts)
Typical heat dissipation (with configuration) [BTU/hour]	13334.6 BTU/hour (fully configured with LPUF-240s) 15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts)
Power supply mode	DC built-in
Rated input voltage [V]	-48 V/ -60 V
Input voltage range [V]	-40 V to -72 V
Maximum input current [A]	63 A/single-module
Number of service board slots	8
Number of slots	12
Redundant MPUs	1:1
Redundant Switch fabrics	3+1
Redundant fans	[400G bundle] 2 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [1T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant power supply	[400G bundle] :3+1 [1T bundle] 5+1
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Maximum number of power chassis inputs	(8 channels/PEM)*2 PEM=(2 channels/PM)*4 PM*2 PEM=16 channels
Maximum input cable size	35 mm²/channel
Front-end circuit breaker/fuse	2 channels of 63 A/single-module [400G bundle] DC device: 4 PMs, with a total of 8 channels of 63 A [1T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Long-term operating relative humidity [RH]	5% to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404 ft.)
MTBF [year]	22.32
MTTR [hour]	0.5
Availability	0.999997443
