Waste plastic rigid form material recycling and washing line

Product Description

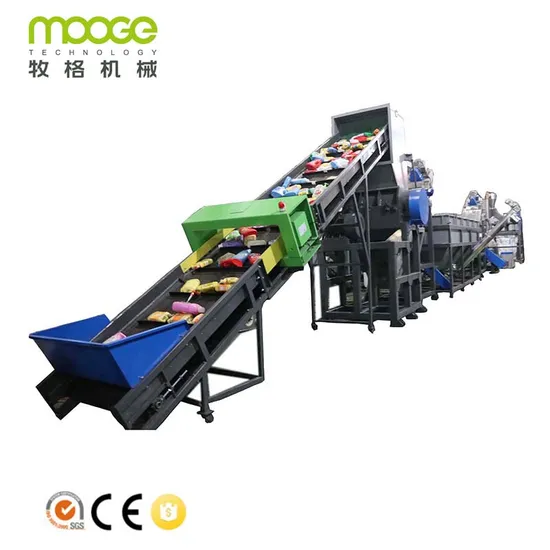

Waste plastic rigid form material recycling and washing line
This washing recycling machine is used to recycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers and so on. which can be used to make granules directly or some other use. The whole line is full automatic and of high effciency. Low noise and easy operation.
Remark:
1- we can supply 300kg/h,500kg/h and 1000kg/h,u can choose the suitable one what u real need.
2-According to your material you can choose different machine.
3- We can customize make the line according to your workshop.
4- We can also provide granulating line
Components List of Waste HDPE/LDPE/PP bottle recycling machine/washing line:

S/N	Item Name	Function summary
1	Conveyor Belt	Feeding the raw material
2	wet Crusher	Crushing the material into the small size flakes, crushing with water can pre-washing the material;
3	Screw Loader	Loading the HDPE flakes and drain the water out from crusher
4	High speed friction washer	Used to remove the dirty from the flakes
5	Auto floating washing tank	Washing out the dirty from the material, get the raw material from the top, and dirty sink down to drain out
6	Screw Loader	Loading material and drain out water from material
7	Vertical Dewatering machine	With high speed to remove water from material, and dirty same time will goes out from the screen
8	Hot air drying system	With hot air to drying the material
9	Collecting silo	Collecting material suitable for jumbo bags
10	Electric control box	Control the whole line, over loaded protecting to motors

Technical Date

Model	Capacity	Installed Power	Hot Washing	Water Supply	Man Power	Area Required
MEB-300	300kg/hr	90kW	Optional	4-5 m3/hr	1-2	22m*5m*3.5m
MEB-500	500kg/hr	115kW	Optional	5-6 m3/hr	2-3	25m*6m*5.5m
MEB-1000	1000kg/hr	215kW	Optional	7-8 m3/hr	4-5	35m*6m*5.5m

Conveyor Belt Semi-Metal Detector Machine
Function: used to feeding the bottles into crusher machine Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again

Crusher Machine

crushing the material into flakes With water inlet do wet crushingThis series blades are more wider, it will save the blades cost Use the big roller bearing ensure its long timeBearing house is outside of the crusher chamber so no dirty goes inside for longer useMachine up chamber is higher and covered by belt no flakes pop out
Friction Wahser Loader Machine
Function: Friction washing the material and loading up it Up and down both mounted with bearing designWith water injection system to cleaning the screenBottom with water drain systemWashing off the dirty and loading the material out to next step processing

Floating Washing Tank
Function: Washing the flakes, prevent dirty going into next process The roller is specially made can have more washing for lakes but less water take out Bottom with Positive and negative screw to pushingthe dirty into middle
Horizontal Dewatering Machine Hot air dryer system
Function: take out dirty and remover water Function: Drying the material
With the roller bearing and fixed outside of rotor for long use life Inside with mesh layer, mesh diameter: 3mm With water spray system to clean the mesh

Packaging & Shipping
1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client's warehouse to loading
Our Services
1.Pre-sale: we given client the details technician offer, sign the sales contract etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always update the new technology to every customer
FAQ
1.How to Choose proper Products you want?
Please tell us as detail as what you want
What's your raw material it is
What's the final products you want to produce
What capacity you want it performance
2.How to Control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment
