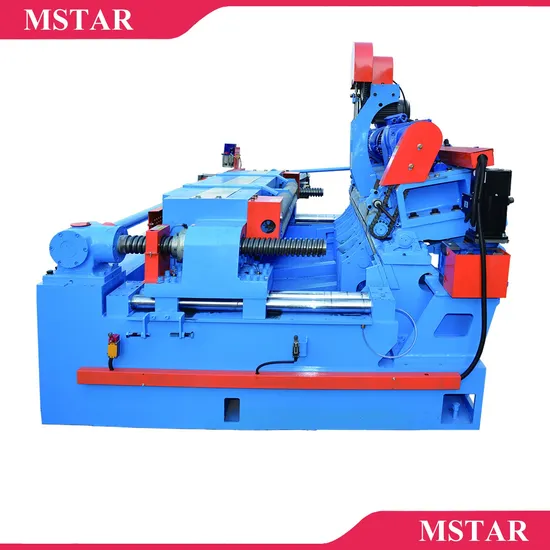

Mstar 4FT Hot Selling High Speed Veneer Peeling Machinery

Product Description

Company Profile

FULL SET PLYWOOD&VENEER MACHINE
ONE STOP SOLUTION
MSTAR MACHINERY CO., LTD is located in Linyi city of Shandong, China, and it is a modern professional enterprise and specialized in research, development, production and distribution of woodworking machineries. Our leading products are high speed spindleless veneer peeling line, sanding machine, hot press, saw, debarker and so on. Our high speed automatic veneer peeling line has become the benchmark of the peeling industry, with the advantageds of high efficiency, energy saving , time saving and labor saving.
By offering qualified products, perfect services and honest sales, we earn the applause from the world, We sincerely look forward to cooperate with you!
Product Description


Product Parameters

DESCRIPTION	UNIT	PARAMETER
LENGTH OF ROLLER	MM	1400
SINGLE ROLLER POWER	KW	7.5KW *2
DOUBLE ROLLER POWER	KW	7.5KW *2
FEEDING POWER	KW	11KW SERVO
GEARBOX		HELICAL GEARBOX
PEELING SPEED	M/MIN	150-300
PEELING THICKNESS	MM	adjustable
BLADE SIZE	MM	1500*180*16
SCREW SIZE	MM	90
MAX OPENING		500
CONTROL SYSTEM		PLC+TOUCH SCREEN CLOSED LOOP SERVO CONTROL WITH HYDRAULIC SYSTEM FOR CHANGING BLADE
OVERALL SIZE	MM	5800*2200*1500
WEIGHT	KGS	7500
high inovance 810 advanced serve drive system, shorten acceleration time and less brake time. use xinjie high speed XD series PLC and touch screen, shorten running time approach switch is imported autonics, stable singal, and response speed fast. 150-300M/MIN peeling and cutting together, all motors are controller by servo drives, frequency speed adjustment, save power, strong anti-voltage fluctuation. imported encoder, don't loss speed, which has strong anti-interference capability. double rail guide, machine is thicken steel plate, running stable with log crane , blade hydraulic loading system, easy for unload peeling blade Roller sides with encoders, detecting speed and electricity.

VENEER MACHINE ADVANTAGE

high speed XD series PLC , high end Inovance inverters and touch screen, shorten running time and stable running
MD810 AND PLC COMBINATION
double shafts guide moving, machine running stable and more accuracy
big screws and nuts, running powerful
Tank chain for protect all machine wires
Packaging & Shipping
When wood peeling machine finish production, we will share test video and pictures to you.When loading, we will send loading pictures to you.After ship leave, we will offer you container no and ship information, and prepare all documents for your custom clearance.
TEAM & CULTURE

Our Project

WORKSHOP

Q1:Can you customize products for clients?
A1: Yes .We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2: If you order, we guarantee the quality is same with what you see. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The configuration of motor and control system determines the change of price. Different quality determines different price.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
Contacts
I believe that by understanding our products,you will recognize and want to buy it,our products will not disappoint you, so do not hesitate to act quickly,contact us.
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
