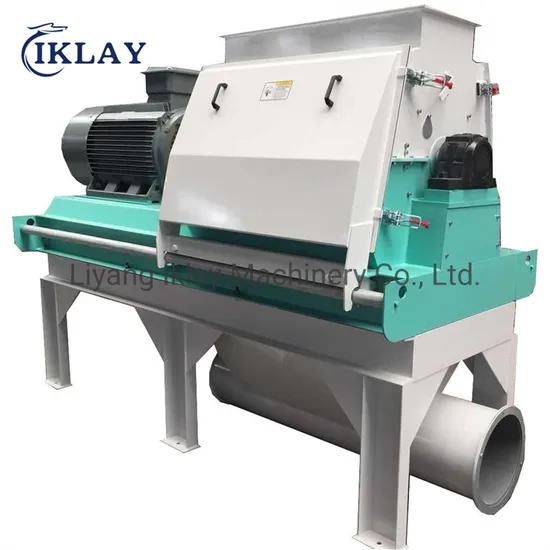

High Quality 1-5tons Per Hour Wood Chip Hammer Mill Wood Chips Grinding Machine
| US$10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SFSP66*40,SFSP66*60,SFSP66*80,SFSP66*100, 66*120
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Cut Off Tool
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Technical Consulting, Installation& Testing etc.
Warranty
2 Years
Transport Package
Iron Box or Wooden Case
Specification
2645*1775*1750 mm
Trademark
IKLAY
Origin
China
HS Code
843610
Production Capacity
1000PC/ Year
Product Description
High Quality 1-5tons per hour wood chip hammer mill wood chips grinding machineTECHNICAL PARAMETER
| Model | SFSP66*40 | SFSP66*60 | SFSP66*80 | SFSP66*100 | SFSP66*120 | ||||||
| Parameter | |||||||||||
| Rotor diameter (mm) | 660 | 660 | 660 | 660 | 660 | ||||||
| Spindle rotate speed (rpm) | 2960 | 2970 | 2970 | 2980 | 2980 | ||||||
| Hammer line speed (m/s) | 102 | 102 | 102 | 102 | 102 | ||||||
| Grinding room width (mm) | 400 | 600 | 800 | 1000 | 1200 | ||||||
| Hammer quantity (fine grinding) | 40 | 56 | 84/116 | 120 | 136 | ||||||
| Power( kw) | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 200 | 220 | |
| Normal air volume | Fine grinding | 55 | 60 | 72 | 78 | 95 | 102 | 145 | 155 | 190 | 205 |
| ( m3/min) | |||||||||||
| Capacity(t/h) | 0.5-1 | 1.5-2 | 2-2.5 | 2.5-3 | 3-4 | 4-5 | 5-6 | 5-7 | 6-8 | 8-10 | |
FEATURES 1.This series hammer mill is mainly used for crushing coarse sawdust,wood shavings and wood chips to the fineness needed to be pelletized,or small wood pieces less than 40mm.
2.Direct transmission is adopted.The reasonable arrangement of hammers and gap between hammers and screens make sure the final products are in uniform fineness.The tool bit of the hammer is spray welding with carbon tungsten alloy.
3.The secondary grinding chamber is assembled in this machine.The base has goof rigidity and little vibration.
4.The bearing imported is with high quality.When working, it has low tem-perature rising.The bearing pedestal is
S KF brand from Germany.
5. Various thickening screen sieve sizes can be selectable. Quick-starting type door opening system makes it fast to change the new screen, easy to operate and convenient to maintain.
