High Precision Speed Slant Bed Auto Bar Feeding CNC Lathe Machine (SL-07)

Product Description

Product Description

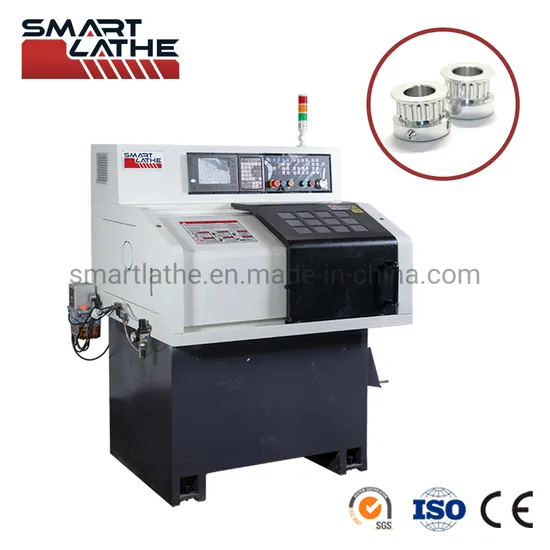

High precision speed slant bed Auto Bar Feeding CNC Lathe Machine (SL-07)
SL-07 with gang-type tool changers perfect fits for the prototyping of smaller workpieces. Fast tool-changing and slant bed construction guarantees increased productivity and easy chip removal. The pneumatic collet with through-hole enables fast loading and the possibility of continuous feeding.
Specification

CAPACITY
Swing Over Cross Bed	Φ200 mm
Swing Over Carriage	Φ50 mm
Max. length of workpiece	150mm
Turning Diameter	Bar Materials up to 7mm Single Workpiece up to 25mm
Bed Type	15° Slant Bed

SPINDLE
Spindle Nose Taper	A2-4
Speed	5000 RPM
Spindle Motor Power	1kw Servo motor
Collet Type	Pneumatic Collet

TRAVELS
Z Axis	150mm
X Axis	300mm
Guideway Type	20mm TAIWAN ball screw rod 20mm TAIWAN linear guideway
Z/X Axis	Up to 20m/min
Machining Accuracy	±0.01mm
Surface roughness	≤Ra 1.6μm

TOOLS
Gang Type Tool	5 Gang Type Tool Holders
Outer diameter of cutting tool shank	16mm*16mm

CNC CONTROL
Controller	SmartBrain™ CNC System Optional: GSK or SYNTEC

POWER SUPPLY
Total Power	2.5KW
Voltage	220VAC 50Hz

DIMENSIONS
Dimensions (L/W/H)	1000mm*700mm*1500 mm
Weight	1000 kg

Standard Configuration

Fully enclosed splash guard with top roof	1KW spindle servo motor	Telescopic guards for X/Z axes
Spindle speed 4000 RPM, A2-4	Automatic lubrication system	Coolant system
Lubrication system	Pneumatic system	Coolant tank
Oil separator	LED working lamp	Electronic handwheel (MPG)
Coolant gun	Toolbox and user manuals	Tool holder (5 sets)
Collect (1 set)	C axis	CNC Simulation

Optional Accessories

Disk brake device

Bar feeder

Follow rest

Applications
Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to 7 mm or single workpieces diameter up to 200mm (Chuck size up to 25mm).
Features
Entry-level CNC lathe with maximum precision and minimum footprint. High rigidity body structure, the lathe base casting is integrally formed and FEM analyzed to ensure superb rigidity and stability. The patented slant bed design increases the capacity of X-axis travel to 300mm and Z-axis to 150mm with a smaller chamber. Taiwan 20mm ball screw rod rail and 20mm linear guideway ensures excellent stability and accuracy of traveling. SmartBrian™ CNC controller co-works with quality electrical parts provide a rapid-operation and durable use. The main spindle is equipped with a C-axis function to simplify the machining of the face drilling, like flanges.in Equips with Taiwan 20mm ball screw rod rail and 20mm linear guideway to provide precision and low vibration tool carriage movement. Auto lubrication and coolant system for reduced maintenance.
Company Profile
FAQ
1:How can I choose machines?
A: for the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
2: What's the main products of your company?
A: SmartLathe concentrated all its resources to develop successfully the SL series of the CNC slant bed lathes including the SL-07, SL-25, SL-36, SL-46, and the CNC Turning-Milling machines to help our customers in the field of prototyping, entry-level business, and the craftsman with a bootstrap budget.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, 528300 China. You are warmly welcome to visit our factory.
4: What are the Trade & Payment Terms?
A: FOB, CFR, and CIF are all acceptable. T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC at sight.
5: What's the MOQ?
A: 1 set. We will offer you're a better price if you order more.
6. What is the delivery time?
A: The full series of standard models are in stock. For a customized one, it depends.
7. Do you have any certificates?
A: Yes, our machine is CE-compliant, and our factory is ISO 9001 accredited.
8. What is the warranty period?
A: The warranty period is generally 13 months after B/L date.
9. Machine installation
A: SmartLathe could assign the technician to the place for the on-site installation if requested by the purchaser.
10. Technical Support
A: The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
11. Demo and Testing
A: SmartLathe built a training center for the clients and employees to study the operation of the machine. You are welcome to visit our factory anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
