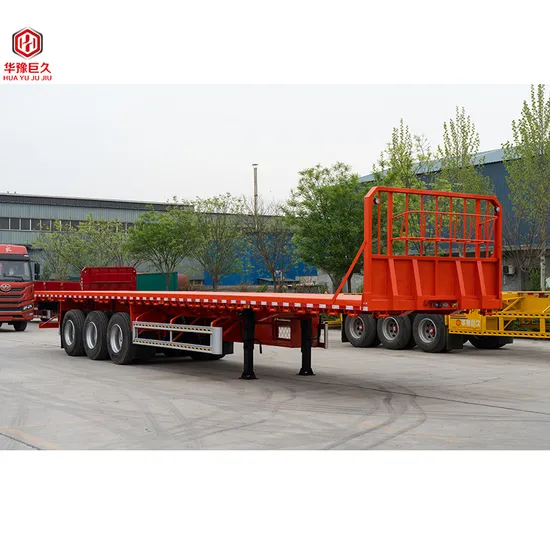

30/40 FT Flatbed Container Semi Truck Trailer for Sale

Product Description

30/40 FT Flatbed Container Semi Truck Trailer for Sale Main Features
1. Certification - TUV, CCC, ISO etc; 2. Fast lead time - 15-20 working days; 3. Material - The whole trailer is made of Shanghai Baosteel materials, with light weight (6.1-6.43) and high strength.And the Q345 steel is is more durable than normal trailer steel to ensure the transportation more safe and stable. 4. Application - It can be used for transporting machinery and equipment, large objects, highway construction equipment, large tanks, super high containers and all kinds of steel; 5. Low cost - The entire trailer designed with high-strength steel can greatly reduce its own weight without reducing the load-bearing quality, which can indirectly reducing the fuel consumption of the tractor and the wear of the tires to lower the customers' costs.
General Specs

Trailer name	Multiple Use Multi-Axle Bulk Cargo/ Container/ Flatbed/Goose Neck Semi Truck Trailer
Application	Bulk Cargo/Pallet/Packaged Goods Transport
Overall Dimension	Length	11.0~13.0meters
	Width	2.5~2.55metres
	Height	2.7~3.5metres
Goose neck	200~400mm if necessary
Curb weight	5~10tons
Payload	40~100tons

Chassis Data

King Pin	JOST brand, bolt-in king pin, 2.0"(50#) or 3.5"(90#) alternative.
Main beams	"H-shape"designed,extra durability even with heavy duty loading; Q355B high tensile steel,supplied by Shanghai Baogang Steel,top-class supplier; Welded by automatic Submerged-Arc processes.
	Top Flange thickness:6/8/10/12/14mm,width 140/160mm; Bottom Flange thickness:8/10/12/14/16mm,width 140/160mm; Middle Flange thickness:4/5/6/7/8mm; height 400/450/500/550mm;
Axles	Brand: Fuwa/BPW/SAF brand or as request; Axle number3/4/5 axles or more; Loading capacity: 13/16/20tons per Axle.
Landing Gears	Brand:Jost/BPW/FUWA brand or as request; Manual lever,28Tons lifting capacity per leg; Optional:Seperate or Parallel landing, single gear or with 2-speed gear box
Suspensions	Leaf Spring Steel Sheet or Air-bag Suspension optional.
Leaf Springs	Brand:FUWA/BPW,etc; Specs:10*13*90(i.e.:10 Layers of leaf spring sheet,13mm thickness per sheet,90mm width per layer) Optional:4layers,3layers,1layer springs with different spec data.
Braking system	Brand:HKW/Wabco brand automatic brake valve; Dual line pneumatic brake system; T30 air chambers; Air cylinder tanks: 40/60 liters, steel or aluminium material.
Wheel rims	9.0-20*12 pcs; Material:Carbon Steel or Aluminium Alloy.
Tyres	Brand: Chaoyang or Chengshan or as request; 12R22.5; 4pcs tyres per axle(i.e.:for 3-axle,it's 12pcs tyres in total)
Tool box	1 standard tool box or as request; Material:steel or aluminium alloy with water proof.
Spare tyre	1 standard set with rack.
Electrical system	7 pin electrical connector; 12/24 volt electrical system.
Function lights	Direction indicator lights,braking lights, reverse lights, license plate lights, front,side and rear clearance lights,fog lights,etc; Rear, front and side reflectors.
Vehicle's Painting	Color: according to customer request(red,green,blue,gray,white,etc); Complete Chassis sand blasting to clean rust; 1 coat of anti-corrosive prime, 1~2 coats of final painting.

Above Information are Standard Spec.
We could customize it according to your requirements!
Related Products
Packaging
Our Workshop
About Customers
Company Profile
Henan Huayu Jujiu Vehicle Industry Co., Ltd. is a special-purpose vehicle manufacturer approved by Chinese government. Located in the city of Jiaozuo, county Wuzhi, Henan province, integrating product design, research, production, and sales services; main products include "HUAYU Jujiu" brand semi-trailers, washing sweeping vehicles, powder material transportation semi-trailers, skeleton transport vehicles, rescue vehicles, wreckers and other special vehicles and modified products; with a registered capital of 20 million yuan; there are more than 110 employees; the products have been exporting to overseas market such as Russia, Philippines, Kazakhstan, Vietnam, Laos, Thailand and other countries .
HUAYU adhering to the business philosophy of "quality for survival, reputation for development, management for efficiency, and service for market expansion", and adheres to the management philosophy of "teamwork, creation of the future, attention to details, and pursuit of perfection" to continuously strengthen internal management and accumulate wealth The management experience of the company, focusing on improving its own quality, stick to the principles of reputation first, quality first, and safe production from beginning to end, establishing a good social image and winning good economic benefits and social reputation.
Looking forward to the future, full of opportunities and challenges, we will carry forward our fine traditions, keep pace with the times, and work hand in hand with all sectors of society to create a better tomorrow!
Certifications
FAQ
Q1:What are your advantages compared with other manufacturers?
1. We are the real manufacturer with more than 20 years production experience and 2 production lines with high capacity.
2.We use Shanghai Baosteel in order to make the trailer with light weight and strong bearing strength.
3. Our production pass the ISO9001, CCC certification.
4. We set the Independent techniques developing department to provide the customized service.
5. The main parts are all certified and qualified products with high quality.
Q2:What service promise do you have?
1. Our 24-hour hotline is always at your service for any questions you may have
2. Lifelong free technical guidance service can be provided.
3. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly. Q3:What information should I let you know if I want to get a quotation?
Please let us know your vehicle usage, road condition, cargo type, tons of your cargo, dimensions of trailer, quantity etc. The more info you provide, the more accurate model and price we can offer for you.
Q4: What is the minimum order quantity? Can the product be customized?
Our MOQ is 1 unit and we can customized trucks according to your any special needs.
Q5:Is it available to print our own brand on our truck?
It is totally acceptable as you wish. Welcome to leave your inquiry!
