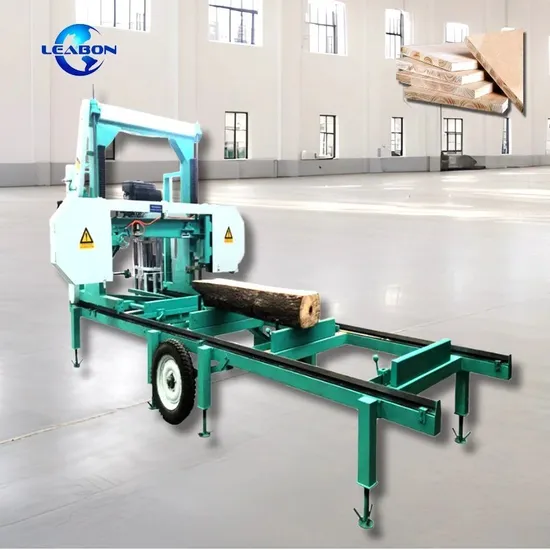

Mobile Portable Horizontal Band Sawmill Timber Cutting Machine Diesel Electric Wood Sawmill Wood Band Saw Machine Wood Sawmill Machinery

Product Description

Mobile Africa Use Portable Horizontal Band Sawmill Timber Cutting Machine Diesel Electric Wood Sawmill Wood Band Saw Machine Wood Sawmill Machinery Price Product Description
- APPLICATION RANGE- Wood Cutting Saw
1). Portable Horizontal Band sawmill is to meet the requirements of customers in Africa and South America.
2). It is simple installation, easy operation, labor saving and high productivity.
3). This machine can be drove by either electric motor or diesel engine
4). It is widely used by the timber process enterprises in the virgin forests area.

Electric Motor Type Wood Sawmill Mobile Diesel Saw Machine Automatic Wood Sawmill
Product Parameters
Technical parameter of wood sawmill machine price

Model	LBJ-700E	LBJ-1000E	LBJ-1300E	LBJ-1600E
Max. Sawing Wood Diameter	700mm	1000mm	1300mm	1600mm
Saw Wheel Diameter	600mm	700mm	700mm	700mm
Sawing Wood Thickness	260mm	300mm	300mm	300mm
Sawing Wood Length	4500mm
Power	15KW/22HP	18.5KW/22HP	22KW/25HP	30KW/27HP
Up/Down Motor	1.1KW
Total Weight (KG)	900	1100	1300	1500

Semil-autoamtic Type Disel Engine Type Portable Sawmills
Electric Motor Type Wood Sawmill
Automatic Wood Sawmill Machine

- Introduction for automatic wood sawmill
Combined with the current automation technology, the heavy dusty horizontal band aaw machibe is a high quality product.
It solves the difficulty of sawing large diameter and in the past and applies for national patents. A great many products are exported to Gabon, Angola, Fiji and Southeast Asian countries.
- Technical Parameter of Automatic Wood Sawmill

Model	LBJ-1200	LBJ-1500	LBJ-2000	LBJ-2500
Max Sawing Wood Width	1200mm	1500mm	2000mm	2500mm
From bet to balde height	1100mm	1200mm	1700mm	2200mm
Saw wheel diameter	960mm	1000mm	1070mm	1070mm
Max SawingThickness	350mm	350mm	400mm	400mm
Sawing Wood Length	6000mm	6000mm	6000mm	6000mm
Length of Saw Balde	7700mm	8600mm	10500mm	10500mm
Power	30kw	37kw	45kw	55kw
Total Weight	3800kg	4500kg	5000kgs	5500kg

Full Hydraulic Wood Sawmill
- PRODUCT INTRODUCTION: Touch screen sizing, variable frequency speed adjustable forward,backward. Hydraulic chain rotation. Hydraulic rotation clamping. Hydraulic wood clamp. Hydraulic log stop pole. Board automatic return hook. Hydraulic plank roller axle. Hydraulic log loading arm.
Technical Parameter of Full Automatic Saw Machine

Model	LBH-700	LBH-1000
Max sawing wood diameter	700mm	1000mm
Saw wheel diameter	700mm	700mm
Max sawing wood thickness	300mm	300mm
Max sawing wood length	4500mm	4500mm
Main Power	18.5kw	22kw
Hydraulic Motor power	3kw	4kw
Band saw blade width	40-80MM	40-80mm
Length of Machine	6000mm	6000mm
Weight	3000kg	3500kg

Raw material and Final Product
Final Cutting Wood Planks :
After Sales Service
After Sales Service:
1) The professional and timely 24 hours after-sale service for timber cutting machine price
2) The relative manual and video of the machine installation and instruction will be provided for you.
3) ODM&OEM Provided band saw machine
4) The engineer is available to install and training for oversea projects swing blade sawmill
Customer Feeback
Buyer Recommend Products



Automatic Wood Sawmill Portable Diesel Saw Mill Multi Blade Rip Saw
FAQ
Before quote, pls inform us follows information, so that we can suggest a suitable model for you accordingly.
1. what's your raw material for processing ? Roung Logs or Square wood plank?
2. What's the size of your raw material? (Round wood: diameter and length; Square wood plank: width and length)
3. What's the size of final wood board you want to cutting ?(Length*Width*Thickness)
4. How many CBM wood/wood planks you want to processing per day?
5. What's the usage of final wood board product?
Pls Click "Send" ask for more Catalog and EXW Price of Wood Sawmill Machine Price
