![High-Performance T-Shape CNC Wire Cut EDM [Bmt500c]](enimg/15/153780.webp "High-Performance T-Shape CNC Wire Cut EDM [Bmt500c]")

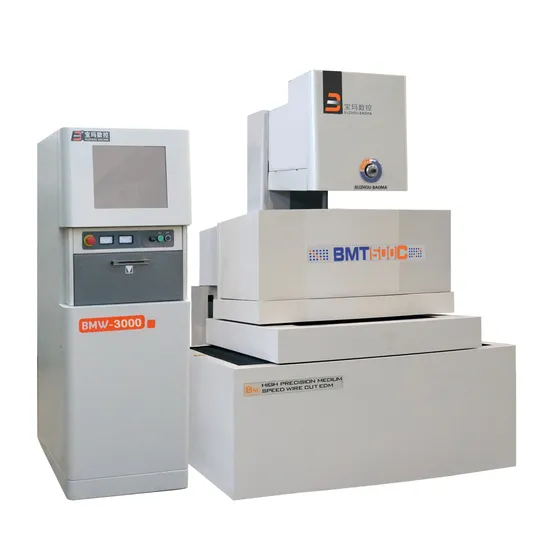

High-Performance T-Shape CNC Wire Cut EDM [Bmt500c]
Basic Info.
Model NO.
BMT500C
Condition
New
Certification
ISO 9001:2008, CE, ISO14001
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Worktable Size
500*750mm
Worktable Travel
400*500mm
Max Cutting Thickness
300mm
Max Loading of Worktable
500kgs
Wire Diameter
0.18mm
Accuracy(mm)
0.006
Roughness(Um)
0.8
Transport Package
Plywood Case; Standard Exporting Packing
Specification
CE; ISO9001; ISO14001; GB 7926-87
Trademark
SUZHOU BAOMA
Origin
China
HS Code
84563010
Production Capacity
1500 Sets/Year
Product Description
Servo Control Wire Cut EDM [ BMT500C ]1. Mitsubishi Servo control system
2. High precision linear guideway
3. U. S. A Emerson Converter
4. Central lubrication system
5. BMXP Control system
6. AutoCAD Plug-in, read DXF
7. Remote jog handle
8. Reusable moly-wire, Lower cost
9. Multiplicity cutting function
10. Better Surface finishing
11. Intelligent Database
| ITEM | BMT500C | |
| Max. Cutting Thickness(mm) | 300 | |
| Max. Cuttting Taper(< =100mm thick) | 12 | |
| PARAMETERS | BMT500C | |
| Table Travel (mm) | 400 x 500 | |
| Table Size (mm) | 500 x 750 | |
| Roughness | Once Cutting (um) | < = 0.006 |
| Multi-Cutting (um) | < =0.006 | |
| Precision | Octagon (um) | < = 0.8 |
| Taper (um) | ||
| Screw and guide way | High Quality Ball Screw ; Steel Linear guideway | |
| Load of Table (Kg) | 400 | |
| Machine Weight (Kg) | 1600 | |
| n Max. Cutting Speed | 150 mm2/Min. |
| n Wire Speed | 5 - 11 m/Min |
| n Max. working Current | 6:00 AM |
| n Wire Diameter | Dia. 0.15-0.2mm |
| n Work Solution | BM2/BM4 Water Base Working solution |
| n Water Tank | 56 L |
| n Rated Voltage | AC~, 3N, 220-415V, 50/60HZ |
| n Ratde Power | 3 KVA |
| n Wire Guide Frame | Adjustable |
| n Controller | BMW-3000 |
| Why choose Suzhou Baoma | |
| Compare Item | SUZHOU BAOMA |
| 1.casting | HT250 from STK (Japanese), 2 times heat treatment. Good rigidity can keep the accuracy for more than 8-10 years. |
| 2.Linear guide way | Linear guide way from TAIWAN |
| 3.Inverter | MITSUBISHI INVETER (JAPAN) |
| 4.CONTACTORS | World Top 500 Brand |
| 5.Higher Frequency module | USA AND JAPAN, we have patent for new designed HIGH frequency system, which max cutting speed can reach |
| 120-150mm2/min. BMW-5000 can reach 210mm2/min | |
| 6.AC SERVO MOTOR and Drives ( FOR BM seriesmachine)DK Series with no-resistor drive system | MITSUBISHI JAPAN AC servo motors and drives. For long time running the machine, there is less heat generated. Very good for machine using life. |
| 7.Controller | High quality with German Technology .module design,easy to trouble shoot, all connections connected by screws, can be used for long time. |
| 8. Control computer | Industrial computer, with 120G SSG, With WINDOWS XP system. which is more stable for long time working. |
| 9. Control system | Real BMXP system, (not copy Autocut), which can use AutoCAD directly. No need change the program to G code. With database |
| function easy to operate. Cancelled the MAIN FUNCTION BOARDS, All functions directly from computer to control machine,which reduced around 85% faulty of machine. | |
| 10. All metal sheets | AN'GANG STEEL |
| 11.Wire tension system | Double directly Auto wire tensions system, can reduce the wearing of wire, and improve the accuracy and roughness of the machine |
| 12. R&D | More than 20 R&D engineers & keep improving our machine and leader in Wire cut machine. |
| 13.Experiences | Start before 2000, with more than 20years experiences on molybdenum wire cut machine ( not brass wire cut machine) |
| 14. Sales | Every year sold more than 2000units machines, exported to more than 60 countries. Totally, installed around 52000units machines. |
| 15.scale | More than 50,000M2 facotries,300workers |
| 16.Honor and certificate | More than 47national patents and 5 golden prizes, more than 20 awards, CE certificate from EU, ISO14001,ISO900,first class |
| exporting license. | |
