US$20.00-80.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Maximum Lifting Height
1.5
Certification
CE, ISO9001:2000
Running Test Load
112.5tons
Transport Package
Wood Carton
Specification
0.75ton-9 ton
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
56.00cm * 32.00cm * 23.00cm
Package Gross Weight
47.000kg
Product Description
Product Description

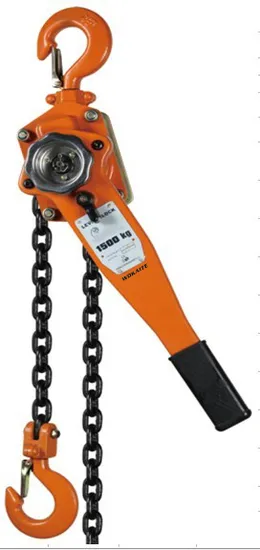

WOKAITE 0.75-9ton HSH-B lever chain hoist features Forged and heat treated load hooks with batch taceability and stretch indicators.Drop-forted load hooks are free to rotate 360 degrees.
Simply select FREE on selector lever and pull the hook down.As long as the hoist is unloaded,the free chaining device serves quickly the right chain length in both directions.
SAFE.Not possible if load is applide!
Double pawl Brake system
MBL of 400% of WLL
HSH-B Series Chain Block Specifications
| Model | | HSH-0.75 | HSH-1.5 | HSH-3 | HSH-6 | HSH-9 |
| Capacity | tons | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 9.2 | 18.4 | 36.8 | 73.5 | 110.3 |
| Effort required to lift rated load | N | 140 | 220 | 320 | 340 | 360 |
| Strands of load chain | | 1 | 1 | 1 | 2 | 3 |
| Load chain diameter | mm | 6 | 8 | 10 | 10 | 10 |
| Net weight | kg | 7.7 | 11 | 21 | 32 | 46 |
| Packing measurement | cm | 36×12.5×16 | 50×13.5×19 | 54×17×21.5 | 54×18×21.5 | 56×32×21.5 |
| Extra weight per metre of extra lift | kg | 0.8 | 2.15 | 2.2 | 4.3 | 6.45 |
Welcome to send us an inquiry, we will provide you with more accurate product information.
