Compact Construction (WZ45-16) Backhoe Loader Tbl15-26
| US$14,500.00-19,280.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WZ45-16
Type
Backhoe Loader
Usage
Earth Moving,Building, Construction
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000, SGS
Condition
New
Sizee
6000×1850×2900mm
Operating Weight
5000kg
Rise Height
3700mm
Tire Model
20.5-16
Transport Package
2 Units in One Hq40 Container
Specification
CE, ISO, SGS, ROPS&FOPS
Trademark
Haiqin
Origin
Shandong, China
HS Code
84295100
Production Capacity
6000 Units/Year
Product Description

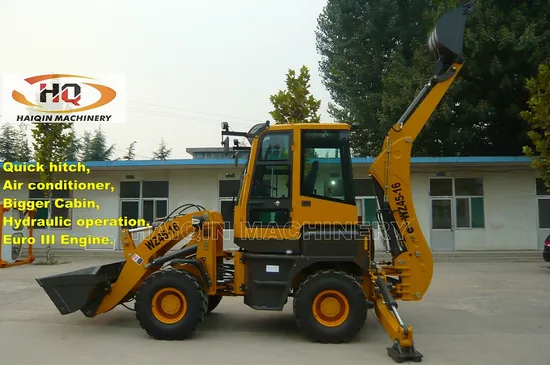

WZ45-16 Backhoe loader:
Product advantages:
1. Cab is bigger and more elegant than common backhoe loaders. We adopt laminated safety glass to have a wider and brighter space and also to make view more wider. The cab is with three doors, and can tilt forward by hydraulic system for convenient maintain. 2. Position of oil tank is reasonable, it is very easy to fuel up. 3. Adopt famous brand hydraulic parts, long service life and stable performance. 4. Adjustable seat, operation is convenient and operator will feel comfortable on the seat. 5. The cab is with air conditioner to make air in cab fresh. 6. Hydraulic steering system make operation easier. Hydraulic walking system with domestic best gear pump can realize stepless speed change. 7. Both have the all abilities of loader and excavator. 8. Work efficiency is high because of superior machine performance. 9. Can select other attached accessories, such as snow shovel plate, sweeper, breaking hammer, clamp equipment to meet customer's different requirements.
| Item | Unit | Parameter | |
| L×W×H | mm | 6000×1850×2900 | |
| Overall Weight | kg | 5000 | |
| Backhoe Parameter | Rated Backhoe Bucket Capacity | m3 | 0.3 |
| Max. Digging Depth | mm | 3400 | |
| Max. Digging Height | mm | 5000 | |
| Max. Digging Radius | mm | 4600 | |
| Turning Angle of Movable Arm | ° | 180 | |
| Loading Parameter | Rise Height | mm | 3700 |
| Discharge Height | mm | 2700 | |
| Min. Turning Radius | mm | 4800 | |
| Discharge Distance | mm | 1000 | |
| Rated Loading Weight | kg | 1600 | |
| Rise Time of Movable Arm | s | 3.5 | |
| Fall Time of Movable Arm | s | 2.5 | |
| Comprehensive Time | s | 7 | |
| Engine Model | Xinchai A498BT1 | ||
| Rated Power of Engine | KW | 36.8 | |
| Engine Flux | ml/r | 40 | |
| Work Pressure | Mpa | 16~18 | |
| Max. Grade Ability | % | 25 | |
| Walking Speed | km/h | 18~28 | |
| Min. Ground Clearance | mm | 260 | |
| Wheel Base | mm | 2000 | |
| Tread | mm | 1530 | |
| Tire model | mm | 20.5-16 | |
