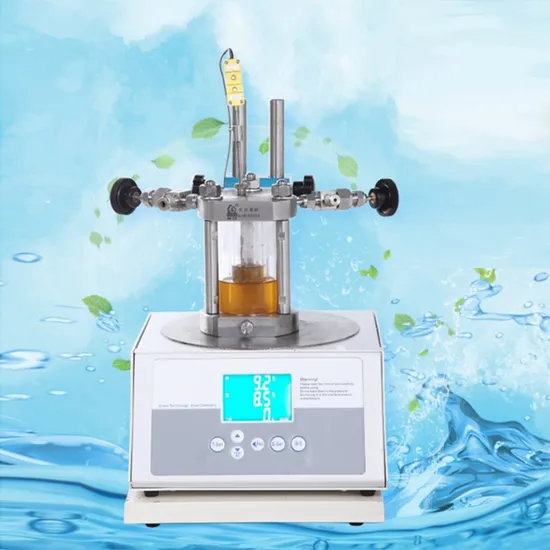

High Pressure Sapphire Micro Reactors

Product Description

Product Parameters

Process visulization
Smart Visual images remove the mysterious veil covering the process information and make vast data alive;you can touch the changes and perceive the presence; you can obtain more information from complicated reaction process.Process data is visual.
Basic characteristics of Sapphire crystal

Crystal structure	Hexagonal crystal
Cell parameters	a=4.785A,c=12.991A
Melting point	2045ºC
Density	3.98g/cm3
Moh's hardness	9
Coefficient of thermal expansion	5.8×10-6/K
Specific heat	0.418W.s/g/k
Thermal conductivity	25.12W/m/k(@100ºC)
Index of refraction	no =1.768 ne =1.760
dn/dt	13x10-6/K(@633nm)
Transmittance feature	T≈80%(0.3~5μm)
Dielectric constant	11.5(//c),9.3(⊥c)

Company Profile
Our Advantages

Packaging & Shipping
Sapphire mini-sized high-pressure reactor is resistant to pressure and visual;used for visual reaction research,sampling analysis,multiphase phase behavior observation, spray observation for supercritical particles preparation,re- search of thermodynamic properties,long-time dissolution process,etc.Also,we can design,customize and process reactors according to experimental requirements of users.

Series Sapphire Micro-Reactors System Specifications
Model Number	S10	S25	S50	S100
Sizes,ml	10	25	50	100
Maximum Pressure(WAWP)	10MPa(1500psi)
Maximum Temperature	150ºC
Constant temp Accuracy	±1ºC
Reactor Mounting	Bench Top
Rotation Speed	0-1200rpm
Electrical Supply
Volts,AC	100 or 220V,50Hz
Motor power(W)	50	50	80	120
Reactor Dimensions
Width,mm	250
Height,mm	250
Depth,mm	455
Weight,kg	15	16	18	20
Materials of Construction	10ML-100ML Sapphire&316L Stainless,Steel,AlloyTA2 Alloy C-276,Nickel.
Other options available,Please call formore information.
