LPG Electronic Filling Station Scale System

Product Description

Product Description
1, Quantitative filling.2,Automatic cut off.3, Intrinsically safe explosion proof, safe and reliable.4, One key setting, easy and convenient. 5, Friendly Keyboard, one key operation, large screen LCD display.6,Lithium battery power lasts for 15days after charging.7,Scanning filling, scanning gas cylinder bar code.8,Wireless data transmission optional.9,Automatic tare of the filling gun , and bottle weight, filling operation convenient.
Product Parameters

Item	Content
Power supply	Single Phase 220V 50Hz
power	30W
Max.Weighing	120kg
Min.Weighing	1kg
Graduation value	50g
Accuracy level	Medium accuracy
Operating temperature	-40ºC~50ºC
Operating humidity	Relative humidity≤90%
Work Pressure	2.4MPa
Scale table size	420mm×530mm
Explosion proof signs	Exdmeib AT3

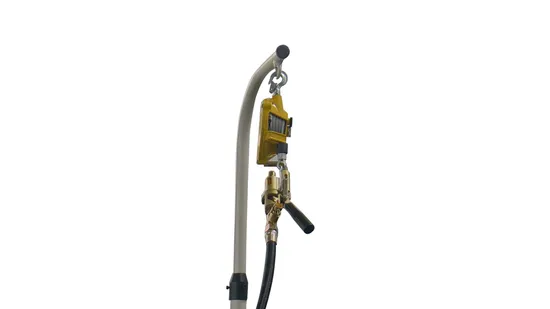

Structure This product consists of a box, a weighing platform, a hanger, a DKX1-12 power control box, a controller, a keyboard, a display, an explosion-proof solenoid valve and a filling gun. The DKX1-12 power control box is explosion-proof and intrinsically safe (the explosion-proof mark is Exd (ib) AT3), and the explosion-proof certificate number is GYB02404; the controller, keyboard, and display are intrinsically safe (the explosion-proof mark is Exib AT3); the 8341 explosion-proof solenoid valve is a cast-in and increased safety type (the explosion-proof mark is Exme T4), and the explosion-proof certificate number is CE001309. The rest are non-electrical parts. The explosion-proof mark of the whole machine is Exdmeib AT3.
The factory setting parameters are shown in the following table:

NO.	Tare lower limit	Filling limit	Total weight	net weight
1	3	6	5	2
2	6.5	13	11.5	5
3	13.5	34	28.5	15
4	40	110	90	50
