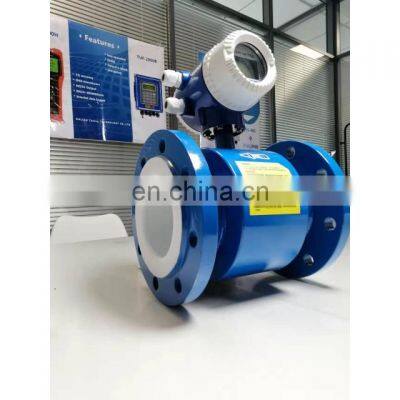

Taijia electromagnetic flow meter flowmeter electromagnetic flowmeter insertion for Agriculture

Product Description

Product Description
DN15 DN50DN80Product DescriptionFeature1.Highly intelligentized2.Multi-electrode structure3.High accuracy4.No moving parts5.Wide operating range6.AC.85V~265V,DC:18v~38V7.No obstruction to the availiable8.Variety of flange types availiable9.Different exicitation frequencies to choose10.Able to detect two-way11.Capacitive empty and full pipe measurement technique12.Lighting protection and anti-jamming circuit design13.Have EPROMApplications1.Water/waste water2.Chemical industry3.Food industry4.Popwer engineering5.Agriculture6.Effluent industrySpecificationProduct nameElectromagnetic flow meterModel NumberTEM82ESizeDN10~DN2800MediumConductive liquid, slurryMedium TemperatureE grade∠60°C.H grade∠180°CConductivity≥5 u S/cmAccuracy±0.25% . ±0.5%Repeatability±0.1% . ±0.17%Rated Pressure0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer )Display Instantaneous flowrate, total flow, velocity, flowrate percentage with back lightSignal Output4-20mA current output, pulse output, pulse output, RS-485, Hart.Power SupplyAC:85V~265V, DC:18V~38VConverter TypeIntegral, remoteProtection GradeIP67/IP68Explosion ProofEx deibmb IIC T3~6Velocity0.05~12m/s ( 0.1~15m/s as required )LinerPU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/F46(FEP) (DN10~DN200)/ PFA (DN10~30)Flowing DirectionForward, ReverseElectrode Material316L, Pt, Ta, Ti, HB, HC, WCElectrode Number3~6 pcsFlange MaterialSS/CSAlarm (normal open)Empty, excitation, upper/lower limitAmbientTemperature: -30~+60°C, Humidity: <90%ProtocalRS-485/ HartRelated productsCompany ProfileDalian Taijia Technology Co.,LtdDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
