Price for Kaishuo Energy Saving Weaving High Density/High Fine Fabric Air Jet Loom Electronic Let-off/Take-up

Product Description

Product Description
The rigidity of the frame and beams of this model of loom has been strengthened, and the whole machine has good stability. The beat-up mechanism has been further optimized, and the structure has become more reasonable. Four-link or six-link beat-up can be used. When the six-link beating-up is used, the opening time of the warp yarn can be extended and the weft insertion can be facilitated, which make the loom more suitable for weaving wide-width loom fabrics and broadens the weaving range of the loom. The shedding mechanism of this model is optional: crank shedding, cam shedding, electronic dobby and jacquard type. Also they are equipped with electronic let-off, electronic take-up and variable weft density weaving functions. What is more, automatic stop after warp break, double weft detection electronic length measurement, electronic weft storage, yarn breakage detection and weft catch detection are all electronically controlled, making the operation of the loom more humanized.

Product Parameters

Model No.	KSA-810	Weft Insertion Rate	The Maximum Weft Insertion Rate can Reach 1235m/min (Different Fabrics have Different Weft Insertion Rates)
	New	Shedding	Crank Shedding, Cam Shedding, Electronic Dobby, Jacquard
Nominal Width	150, 170, 190, 230, 280, 340 (cm)	Let-Off	Electronic
Weft Yarn Range	Short Fiber: 7 to 60 tex (80 to 10Ne) (Optional Device Below 10) Long Fiber: 5 to 44 tex (40 to 400den)	Take-Up	Electronic
Main drive	It is Directly Started by an AC Starting Torque Motor, which can be Forwarded and Reversed at a Slow Speed	Selvage	Leno Edge (Raw Edge, Smooth Edge)
Lubrication	The Gears in the Large box, the Let-Off box and the Take-Up box are Lubricated by oil Bath, and Others are Lubricated by Forced Centralized Oil Supply	Electrical control	Programmable Computer Controller is Used as the Core and Various Weaving Process Parameters can be Set

Company Profile
Established in April 2002, Qingdao Kaishuo Machinery Technology Co., Ltd. is located in Qingdao, a beautiful coastal city, and Wangtai Town, Huangdao District, Qingdao, which is a famous textile machinery town in China. The company has a superior geographical position and convenient transportation by sea, land and air. The company covers an area of 27,000 square meters, with a building area of 14,000 square meters, and has 126 employees, including 43 engineers and technicians. It is one of the rapidly rising and growing industrial enterprises in Qingdao in recent years. After just a few years of development, Qingdao Kaishuo Machinery Technology Co., Ltd. has developed into a professional manufacturer of water-jet looms integrating R&D, manufacturing, sales and service. The company takes "continuous innovation in technology, steady improvement in quality and excellent service" as its business philosophy, strictly follows the enterprise policy of "developing the factory by science and technology, establishing the factory by quality, taking innovation as the soul and putting the brand first", adheres to the management concept of "zero defect in quality" and takes "better quality and better service" as its eternal pursuit. Enterprises attach great importance to the application of "new materials and new processes" in technological development. According to the market demand, we constantly develop new products to meet the requirements of our customers.


Certifications

Exhibition show

Workshop Display

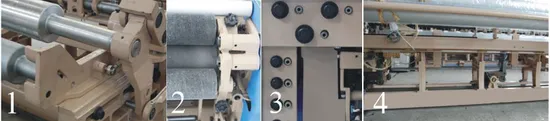

Product Details

FAQ
About air jet loom
Question:What rotate speed can a air jet loom achieve?
Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our KSA-706 model is designed to rotate at a maximum speed of 650 rpm, but it may vary slightly depending on the fabric type.
Question:What is the power consumption of a air jet loom?
Answer:The power consumption of air jet looms is related to the appropriate motor power, typically between 5.5kw,6.5kw and 7.5kw.
