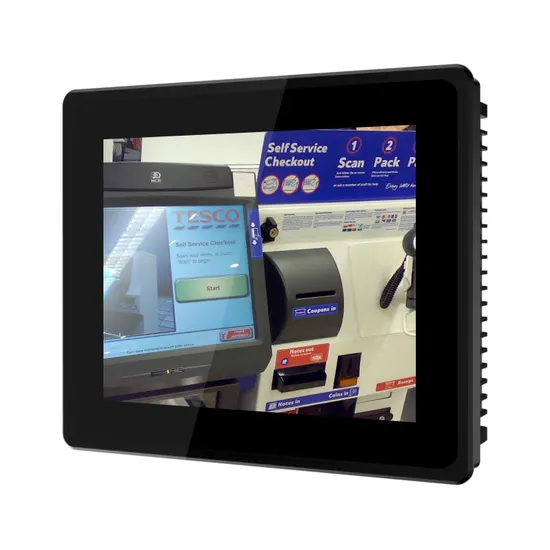

OEM/ODM Embedded All-in-One Touch Screen Industrial Panel PC
Basic Info.
Model NO.
YC-104EM
Screen Size
10.4 Inch
Screen
10.4 Inch 10 Point Capactive Touch Screen
CPU
Intel IVY Bridge /I5-3317u
OS
Win 10
Contrast
1000
Brigtness
300 Cdm2
Screen Scale
4:3
Power Supply
DC 12V
Type
CNC
Touch Screen
Touch Screen
Power Supply Type
DC 12V
Installation
Embedded/Wall Mounted/Desktop
Accessories
Power Cable, Adapter, Buckle Accessories
CPU Type
Intel IVY Bridge /I5-3317u
Transport Package
Gift Box
Specification
Metal + Glass
Trademark
Portworld/ODM/OEM
Origin
China
HS Code
8528591090
Production Capacity
3000PCS / Week
Packaging & Delivery
Package Size
40.00cm * 24.00cm * 12.00cm
Package Gross Weight
3.500kg
Product Description
Product Description| System | CPU | Intel® Ivy Bridge /i5-3317U | |
| RAM | 4GB (8GB option)Onboard 1 strip of 204 Pin DDR3 SO-DIMM memory slot ,Memory supports up to 8GB | ||
| Hard Disk | 128GB | ||
| Operating system | Windows 10 | ||
| WiFi | 300Mbps @ 400GI (Max.) wireless module, signal omnidirectional coverage 20~30 meters | ||
| Graphics card | Intel CPU built-in graphics core | ||
| Audio | Onboard ALC269 audio decoding controller; power amplifier NS4251 3W@4Ω MAX | ||
| Network | 1 X Realtek 8111H/8111G Gigabit Ethernet | ||
| Display | Size | 10.4 inch | |
| Resolution | 1024*768 | ||
| Contrast ratio | 1000 : 1 (Typ. ) ( TM) | ||
| Screen type | a-Si TFT-LCD | ||
| Grayscale response time | 30(TYP. ) (Tr+Td) ms | ||
| Contrast ratio | 1000 : 1 (Typ. ) ( TM) | ||
| Pixel pitch | 0.264 (per one triad) x 0.264 | ||
| Backlight type | WLED , 70 hours with LED driver | ||
| Brightness [ cd/m2] | 250(Typ. ) | ||
| Viewing angle | 80/ 80/ 80/ 70 (Typ. ) (CR≥10) | ||
| Display color | 16. 7M , 72% (CIE1931) | ||
| Touch | Touch type | Capative touch | |
| Single point life | > million times | ||
| Touch strength | 15 40g | ||
| Surface hardness | 6H | ||
| Glass type | Chemically strengthened plexiglass | ||
| Interface | USB | 2*USB3.2 Gen 1 (5Gbps), 2 * USB2.0 (optional 1 * LAN2) | |
| Extended display | 15-pin standard VGA female port | ||
| HDMI | Standard HDMI Type A port,HD digital signal output display | ||
| VGA | D-Sub, the analog signal output is shown | ||
| Network Interface | On board 1 X Realtek 8111H/8111G Gigabit LAN | ||
| Power connector | 2. 5MM 12V 5A power port | ||
| Antenna | 50MM omnidirectional 2.0dBi gain frequency range 2400 -2500MHz | ||
| Power on/off button | CLR _ CMOS , CMOS Clear key (press 4s Clear _ CMOS) | ||
| Audio | 1*3.5 brush LINE-OUT, 1*3. 5MM MIC-IN | ||
| Environment | Operating temperature | -10 ºC ~60 ºC | |
| Working humidity | 20%~80% | ||
| Maximum power consumption | ≤48W | ||
| Working current | ≤4A | ||
| Protection level | Front panel IP65 waterproof and anti-dust | ||
| Others | Material | Aluminum alloy | |
| Color | Black | ||
| Warranty | 1 year | ||
| Packing List | All in one tablet PC, Power cable, Adapter, buckle accessories | ||
Our Teams:
Certifications
FAQ
1.Can you accept sample order?
A:Yes.Trail orders are acceptable
2.How long does it take to deliver the sample?
A:It depends on different products,Most models are available. If OEM, it usually takes 10-15 days.
3.What's your Mini Order Quantity(MOQ)?
A:It depends on different products,for AIO products, there's no MOQ,
4.What payment term you can accept?
A:For sample, Trade Assurance or West Union is available,for big order by T/T,West Union.
5.How to ship the goods to us?
A:For sample or small quantity,by Express .Such as DHL, FedEx, UPS etc
For big orders,normally by air or by sea. Also by Express
6.Can we have our own logo printed on the product or package?
A:For sample,it usually be neutral.For big order,it support customized logo & packages..
7.How much will the customized logo cost?
A:For big order, if your quantity up to our MOQ, it usually be free.
