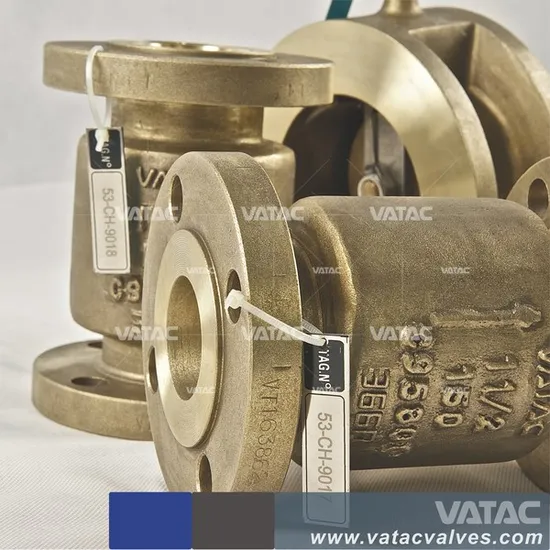

Cast Flange Check Valve Flange Check Valve
| US$35.00 | 1 Piece (MOQ) |
Basic Info.
Structure
Swing
Function
Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
2" to 50"
Class
150 to 2500
Certificate-1
ISO 9001: 2008
Certificate-2
PED CE-0575
Transport Package
Sea Worthy
Specification
API, ANSI, ASME, DIN, JIS, GB etc.
Trademark
VATAC
Origin
China
HS Code
84818040
Production Capacity
6000ton Per Year
Product Description
Cast Steel Flange Check Valve (H44H)Vatac Swing Flange Check Valve Features & Specifications
Design & Manufacture: API6D, ANSI B16.34, BS1868
Bolted Bonnet, Swing Type Disc, Threaded or Welded Seat Ring of Check Valve
Available in Full Port Or Reduced Bore
Size Range: 2" to 48"N. B.
Pressure Ratings: ANSI 150, 300, 600, 900
End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
To MR 0175 and MR 103 Upon Request
| DESGN & MFT. | BS 1868 | ENDS CONNECTION | FLG. RF |
| PRE-TEP. RATING | ASME B16.34 | INSPECT & TEST | API 598 |
| F-F DIMENSION | ANSI B16.10 | END CONNECTION | ANSI B16.5 |
| MARKING | MSS SP-25 | FIRE SAFE DESIGN | -- |
| PAITING | TBA | SPE. REQUIREMENTS | N.A |
