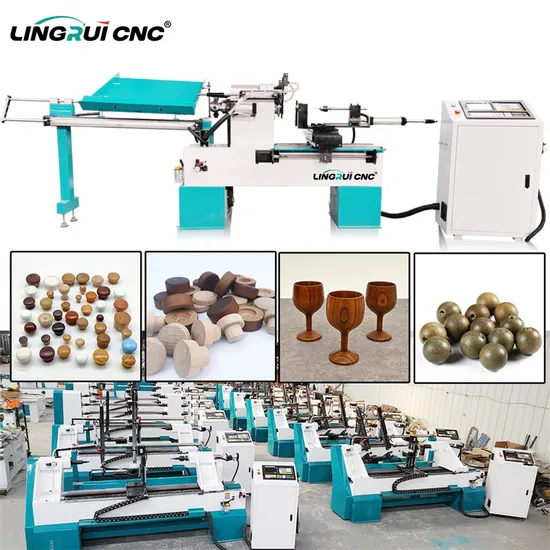

High Efficiency Small Size Automatic Feeding CNC Wood Lathe CNC Wood Turning Milling Machine

Product Description

Product Description
Advantages of the new CNC Wood Lathe machine: 1. The machine is equipped with a car -shaped knife, cutting knife, inner hole knife, and drill bit. It can be adjusted and used at will according to the processing product, which is simple and convenient.
2. The machine starts automatically with one button, and can automatically load and unload materials. One person can operate multiple machines.
3. You can change the pneumatic sandwiches according to the diameter of the material. The material and round materials can be selected at will. You can adjust the material warehouse.
4. Use 3KW brake motor, speed of 3000r/m, millisecond brakes, higher efficiency.
Detailed Photos

Product Parameters

Processing size	60/70/80*150mm
Bed frame	Heavy-duty integral fully cast lathe, independent control cabinet
Motor	3KW brake motor
Drive mode	servo driver
Motor speed	3000r/m
Transfer method Transmission way	XY axis 20TBI ball screw drive
Guide X,Y,Z Guide Rail	Taiwan Hiwin High Precision 20 Straight Line Square Rail
Device cable	pure copper cable
Control System	CATEK CNC special control system panel, CK1000TC
Lubrication system	Oil filling and maintenance system
Operating Voltage	AC380V/220V 50/60Hz(customizable)
Compatible software	Artcam, type3, CAD drawing, CDR, solidworks UG powermill, etc.
Engraving instructions	Standard G code, u00, mmg, plt
Loading and unloading device	Multi-linkage cylinder loading rack (simple and easy to use)
Security system	All photoelectric limits of XYZ three-axis
Repeatability X,Y,Z Traveling Positioning Accuracy	±0.02mm
Toolbox	Turning tools, cut-off knives, wrenches, handwheels, oil bottles, oil-water separators, etc.

Multi-energy integration
The machine is equipped with a car -shaped knife, cutting knife, inner hole knife, and drill bit. It can be adjusted and used at will according to the processing product, which is simple and convenient.
Automatic clamp
You can change the pneumatic sandwiches according to the diameter of the material. The material and round materials can be selected at will. You can adjust the material warehouse arbitrarily according to the length of the raw material.

Grinding wheel
Optional 230mm diameter, 50mm thickness grinding and polishing wheels can be used to grind and polish small products at one time, with more perfect processing effects!
Control System
Using an intelligent CNC system with a 7-inch large screen and high visualization degree, controllable accuracy of 0.01MM, simple
operation and single person can operate multiple machines, improving efficiency and saving labor.
Automatic feeding
Use multiple combined cylinder structures to run linked operation to achieve fully automatic feeding. One -click operation starts, the whole root material is automatically cut off, and the feeding is automatically delivered after processing.
Automatic loading and unloading
The fully automatic loading and unloading silo can store multiple raw materials at a time. After processing, the materials are automatically fed, saving manual loading time. The loading length can be adjusted at will.
Screw & Guide Rail
Imported SHANG YIN HIWIN high-precision slider, guide rail, TBI ball screw.
Company Profile

We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Certifications
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7.Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
