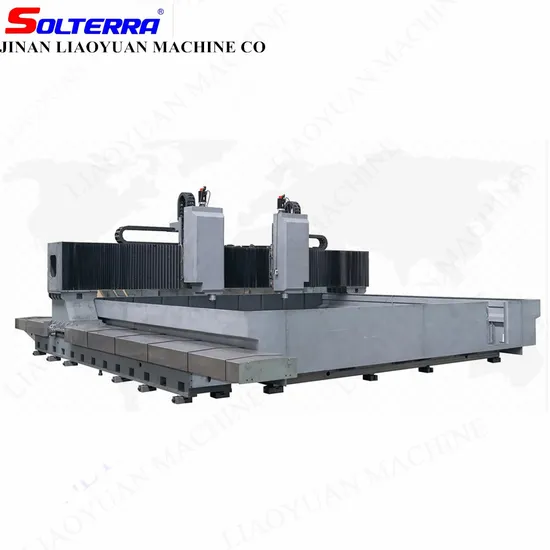

Petrochemical Industrial Boiler Heat Exchanger Tube CNC Plate Drilling Machine Flange Tube Sheet Drilling Milling Machine

Product Description

Petrochemical Industrial Boiler Heat Exchanger Tube CNC Plate Drilling Machine Flange Tube Sheet Drilling Milling Machine
MACHINE APPLICATION
1.Engineered specifically for the meticulous drilling processing of tube plates, clapboards, and flanges, this machine is an indispensable asset in the petrochemical, boiler, and wind power flange industries. It also excels in creating joint plates for construction, bridges, and iron towers, among other applications.
2. Boasting unparalleled efficiency and unwavering working accuracy, this machine is designed for ease of operation and consistent, high-performance results.
MACHINE FEATURES
1. Our machine bed boasts dual heavy-load linear roller guide pairs, ensuring unparalleled stability and precision on both sides.
2. The cross beam of the gantry is fitted with two advanced movable slides, enhancing versatility and operational efficiency.
3.Our machine comes integrated with a state-of-the-art hydraulic system, facilitating seamless hydraulic balance for the vertical ram and efficient hydraulic cutter release for the spindle.
4.Featuring the renowned FAGOR8055 CNC system from Spain, it is equipped with an RS232 interface and a modern LCD screen for user-friendly operation.
5.It incorporates a chain-plate type automatic chip conveyor and a chip collection trolley, ensuring effortless and efficient chip management.
6. We select key machinery, hydraulic pressure, and electric components from esteemed brands both domestically and internationally.

Product Parameters

Name	Description	Value
Max. work-piece size	LXW	2500x2500mm
	Max. Thickness	250mm
Vertical Drilling spindle	Max. Drilling dia.	Φ80mm
	Max.Tapping dia.	M36
	Speed	30-3000r/min
	taper	BT50
	Power of frequency motor	22kW
	Distance from end of spindle to surface of worktable	300-800mm
Gantry longitudinal movement(X axis)	Max. stroke	2500mm
	Servo motor	2x3kW
Drilling head transverse movement (Y axis)	Max. stroke	2500mm
	Servo motor	3kW
Drilling head in-feed movement (Z axis)	Stroke	500mm
	Servo motor	3kW
Chip removal system	Type	Plate-chain
	Quantity	2
	Removing speed	1m/min
Cooling system	Cooling way	Internal & External cooling
	Pressure/flux	≥6Mpa
Automatic lubrication system	Lubrication pressure	2Mpa
Electric system	CNC System	SIEMENS CNC
	No. of CNC axis	3+1
Overall size	L xW x H	≈5300x5200x3500mm
