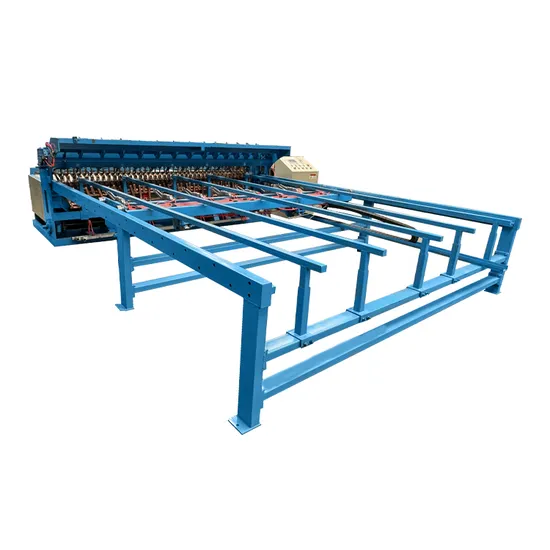

Hot Selling Factory Price 358 Anti Climb Fence Security Welded Mesh Machine for 358 Fence

Product Description

Product Description
358 Fence Mesh Welding Machine Cross Wire Feeding Hopper Line Wire Threading Device
Functions:
1.1 Our 358 fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .
1.2 Per-cut line wires are fed by hand.Per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the step motor control ,brake motor wheels and the cross wire will fall automatically from the hopper.
1.3 Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
1.4 The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
1.5 Pulling mesh way adapts step motor according to the setting parameters into the touch screen,ensures the precision of pulling mesh.

The advantages of the 358 fence mesh welding machine include as follows:
High Strength Welding: Utilizes advanced welding technology to create strong, durable weld points, ensuring the finished product is robust.
High Efficiency: With a high level of automation, the machine produces quickly, increasing productivity and reducing labor costs.
Precision: Welding positions and mesh sizes can be precisely controlled, ensuring that products meet standard specifications.
Versatility: The machine can be adjusted to produce various sizes and shapes of welded mesh, making it suitable for a wide range of applications.
Stability: The sturdy construction of the equipment ensures stable operation, even in different working environments.
User-Friendly Operation: The intuitive control system makes it easy to operate and maintain, reducing training costs.
Material Savings: Precise welding reduces material waste, helping to lower production costs.
Low Noise Operation: Compared to traditional welding equipment, it operates with lower noise levels, making it more environmentally friendly.
Wide Applicability: Ideal for manufacturing various types of fencing, including security fences, prison fences, and agricultural fences.
These advantages make the 358 fence mesh welding machine an excellent choice for producing high-quality fencing solutions. If you have more questions or need further details, feel free to ask!

Detailed Photos
Threading Line Wire Device and Cross Wire Inspection Device Water Welding Transformers Step Motor to Pulling Mesh Device

PLC Touch Screen Control Silicon
Product Parameters

No.	Item	Specification
1	Welding Wire Diameter	Φ3.0-6.0(mm)
2	Cross Wire Space	12.5-250mm(adjustable)
3	Line Wire Space	76.2-250mm(adjustable)
4	Max Mesh Width	2500mm
5	Max mesh length	3000mm
6	Number of Electrodes	33
7	Welding Speed	0-80times/min
8	Rated Voltage	Three phase,380V,50HZ or customized
9	Rated Power	125KWA*8 (Water cooling system)
11	Main Motor	5.5KW (Electromagnetic Brake Motor)
12	Welding Time	10ms-100ms
13	Pulling Mesh Way	Step Motor
14	Welding Way	By Control Silicon Control Electric Resistance Weld
15	Pressure Mode	Adjustable Spring Pressure
16	Weight	About 4.5 T
17	Overall Dimension	3500*3400*1800m
18	External Power Supply	380V±5% 50Hz,Three Phase,<=100m from the control cabinet or customized
19	Single-phase Load Area of Power Wire	(Copper Wire)120mm2
20	External Power Transformer by Three Times Welding	150KVA
21	Cooling System	Clean,neutral to slightly alkaline(ph:7~8)water,flow rate 5.12m3/h,import temperature 25~30ºC.

Certifications
Packaging & Shipping
Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines,Cattle Fence Machine, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,Wire Straightening and Cutting Machine,etc.Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".Our machines have already exported to more than 40 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.
Production Procession
After Sales Service
We supply the detailed guidance and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Special technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure him the personal healthy and property safety, and pay 120 salaries per day.
Guarantee: one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.
