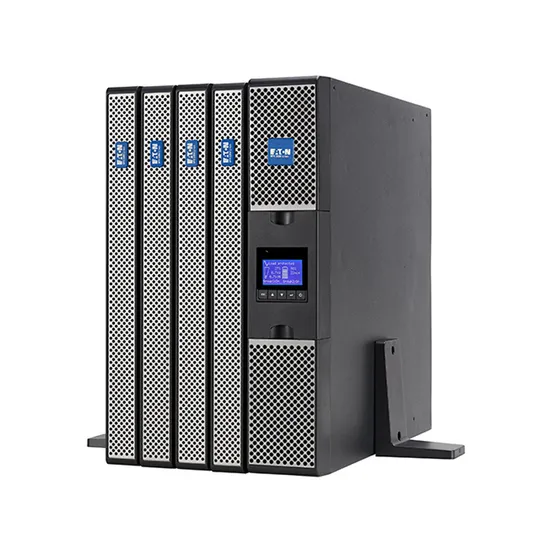

Eaton 9px Lithium Rack/Tower 1kVA 1500va 2200va 3kVA 220V PF0.9 98% Pure Sine Wave Single Phase Online UPS for Computers/Servers/Data Rooms/Hospitals Equipment
| US$1,095.00-2,579.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Eaton 9PX Lithium UPS
Protection
Short Circuit
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Minitype
Equipment Mode
Centralized Model
Brand
Eaton
Product Name
Eaton 9px Lithium UPS
Power Level
1kVA-3kVA
Input Voltage
200/208/220/230/240V
Output Voltage
200/208/220/230/240V
Efficiency
98%
Technology
Online UPS
Short Circuit Current
90A/120A
Rated Frequency
40-70 Hz
Form Factor
Rack/Tower
Trademark
Eaton
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
Eaton 9PX Lithium-ion UPS technical specifications| Technical specifications | 1000 | 1500 | 2200 | 3000 | |||
| Rating(VA/W) | 1000VA/1000W | 1500VA/1500W | 2200VA/2200W | 3000VA/2400W(3000VA/3000W with EBM) | |||
| Format | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | |||
| Electrical characteristics | |||||||
| Technology | On-line double conversion with Power Factor Correction(PFC) system | ||||||
| Nominal voltage | 200/208/220/230/240V | ||||||
| Input voltage range | 176-276V without derating(up to 100-276V with derating) | ||||||
| Input frequency range | 40-70Hz, 50/60Hz autoselection, frequency converter mode | ||||||
| Efficiency | up to 91.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 92.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 93.5% in online mode(up to 98% in Hi-efficiency mode) | up to 94% in online mode(up to 98% in Hi-efficiency mode) | |||
| Connections | |||||||
| Input | 1 IEC C14(10A) | 1 IEC C20(16A) | |||||
| Outputs | 8 IEC C13(10A) sockets | 8 IEC C13(10A) sockets+2 IEC C19(16A) sockets | |||||
| Switched outlet group | 2 outlet groups | 2 outlet groups | |||||
| Batteries | |||||||
| Typical backup times* | 300W 500W 800W 1200W 1800W 2400W | ||||||
| 9PX1000 | 45 30 19 | ||||||
| 9PX1000+1 EBM/4EBM | 114/321 76/210 49/137 | ||||||
| 9PX1500 | 45 30 20 13 | ||||||
| 9PX 1500 +1EBM/4EBM | 114/321 76/210 52/145 33/92 | ||||||
| 9PX2200 | 66 45 30 21 14 | ||||||
| 9PX2200 +1EBM/4EBM | 170/475 112/305 78/205 52/148 35/98 | ||||||
| 3PX3000 | 68 46 30 21 14 10.5 | ||||||
| 3PX3000+1EBM/4EBM | 184/516 120/320 80/215 54/153 37/104 28/78 | ||||||
| Battery | Lithium-ion battery (LFP) with 8 to 10 years service life, automatic recognition of external battery modules (EBM) | ||||||
| Communication | |||||||
| Communication ports | 1 USB port + 1 serial RS232 port+ 1 mini-terminal block for remote ON/OFF+ 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay | ||||||
| Communication slot | 1 slot for Gigabit Network management card (included in netpack versions), Industrial Gateway Card (Modbus TCP/RTU), or Relay card. | ||||||
| Operating conditions, standards and approvals | |||||||
| Operating temprature | 0 to 40ºC | ||||||
| Typical noise level | 35dB | 40dB | |||||
| Safety | EC/EN62040-1,UL1778,CSA 22.2 | ||||||
| EMC | IEC/EN62040-2,FCC Class B, CISPR22 Class B | ||||||
| Approvals & markings | CE/CB report(TUV)/EAC/Energy Star | ||||||
| Dimensions H×W×D in mm/ weight | |||||||
| 1kVA | 1.5KVA | 2.2kVA | 3kVA | ||||
| UPS | 86.5×440×450/15.6Kg | 86.5×440×450/15.8Kg | 86.5×440×605/22.1Kg | 86.5×440×605/22.8Kg | |||
| EBM | 42.9×438×448/12.0Kg | 42.9×438×448/12.0Kg | 42.9×438×603/17.4Kg | 42.9×438×603/17.4Kg | |||
| Customer service and support | |||||||
| Warranty | 5 years full warranty (electronics, internal batteries and EBM) | ||||||
| *Backup times are approximate and may vary with equipment configuration, battery age, temperature, etc. | |||||||
| Parts numbers* | 1kVA | 1.5kVA | 2.2kVA | 3kVA | |||||
| UPS RT2U | 9PX1000IRT2U-L | 9PX1500IRT2U-L | 9PX2200IRT2U-L | 9PX3000IRT2U-L | |||||
| UPS RT2U with Gigabit Network card | 9PX1000IRTN-L | 9PX1500IRTN-L | 9PX2200IRTN-L | 9PX3000IRTN-L | |||||
| EBM RT1U | 9PXEBM48RT1U-L | 9PXEBM48RT1U-L | 9PXEBM72RT1U-L | 9PXEBM72RT1U-L | |||||
| *All 9PX Lithium-ion UPS and EBM are delivered with rack kit. | |||||||||
