Fiber Laser Cutting Machine Small Laser Cutting Machines Metal Laser Cutting Machines High Precision 1000- 3000W Cw Qcw Raycus Jpt Max Ipg CNC Metal Sheet

Product Description

Product Description

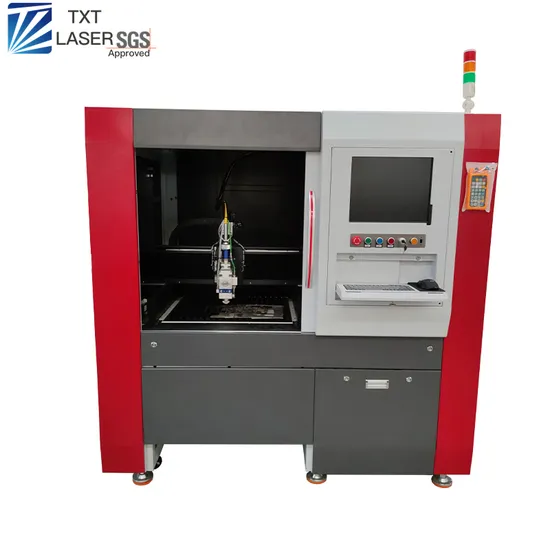

6060 Fiber Laser Cutting Machine
1.The equipment adopts inward opening side sliding doors, which effectively reduces the door opening height and is suitable for lower floors.
2. The design of the operating screen shaft is convenient for the operator to debug the parameters. The software adopts general-purpose software, and the cutting path is automatically optimized to reduce the difficulty of use. It is compatible with multiple file formats dxf, Gerber, etc.
3. The equipment adopts the upper air shower structure, which makes the upper part of the equipment produce downward air pressure, which effectively controls the dust on the upper part of the equipment, and also reduces the impact of dust on the moving parts. It is better to match the suction device of our company.
4.The equipment platform adopts the marble platform to eliminate the vibration error when the linear motor moves. The marble is also insensitive to temperature deformation and reduces the impact of the weather on the equipment.
5.The equipment guide rail adopts a self-designed double-layer sealed structure to effectively prevent dust from affecting the linear motor and guide rail.
6.The equipment adopts the laser customized by our company, and the laser is optimized according to the cutting process, and the cutting effect is comparable to the imported laser.
7. The equipment adopts the laser head customized by our company, and adjusts the laser head parameters to achieve the optimal plan for cutting high-reflection materials
Product Parameters

Model	TXT-HF-6060
Bed Size	600mm x 600mm
Laser Power	1000W up to 3000W
Laser Source	IPG / Raycus / MAX
Location Precision	±0.01mm
Repeat Position Accuracy	±0.02mm
Drive System	Servo Motor + Ball Screw
Max Acceleration	0.5G or 1G
Max Moving Speed	40m/min
Optics	RayTools Cutting Head or Other
Cooling Method	Water Cooling
Fume Extraction	Separate air extraction system supplied (Optional self-contained fume filter system available)
Software	CypCut
Compatible File Type	.dxf, .pl
Power Supply	380V 3-Phase
Machine dimensions (mm)	1800 L x 1450 W x 2080 H
Machine weight	1200KG
Cabinet	Fully Enclosed
Warranty	12months excluding consumables

Industry Applications Small metal shell structural parts, especially suitable for 2D laser processing after stamping and forming of digital product shells. Metal glasses industry: cutting temples, glasses frames. Metal jewelry industry: hollow cutting of various metal jewelry, cutting and scribing of electronic ceramic products such as alumina and zirconia. It can also be used for fine micro-hole processing of various precision medical equipment, aerospace and other products, with a diameter as small as 0.01-0.03mm.
Package and shipment
For exported machinery and equipment, we will use export wooden box packaging, which can meet the special requirements of importing countries such as fumigation.
Guarantee and after service
We provide a 2-year warranty on the whole machine,within 2 years, if any parts cannot work properly due to quality problems, our company will be responsible for repairing or replacing them.
We provide 7x18 hours service, after you receive machine and read our user manual and operation videos, we can guide you to do installation, and start training in details. if any problem during the future operation, just contact us in time, our engineers will help you to solve problems as soon as possible
FAQ
Q: How can I install and debug the machine?A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers toensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.Q:Can I customize the machine according to my requirement? Or OEM?A:TXT is a research and development manufacturing company, we will provide suitable machines according to the specific needs ofcustomers, and provide OEM services.Q:Can you arrange transportation for me?A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose airfreight.Q:What is the warranty period of the machine?A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, freerepairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for lifeoutside the warranty period.Q:What's the consumables of the machine? How much?A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about10000 hours, as to lens and power supply, they will not damage if no accident.
