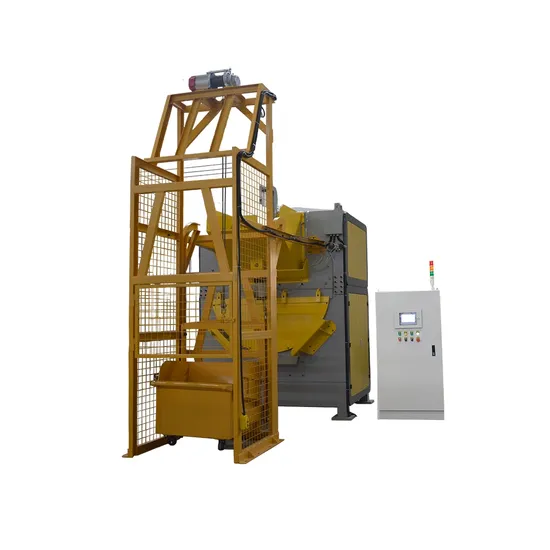

Sand Cleaning Machine for Faucet Hardware Castings

Product Description

Product Description
Drum sand cleaning machine
The equipment is mainly composed of a hopper lift, a sand cleaning drum, a vibrating screen and a conveyor belt. Put the casting into the material truck,lift and pour the material into the sand cleaning drum, and close the gate. Spiral blades are set in the drum to make the casting fully roll and collide in the drum. According to the different products, after rolling for about 7-10 minutes, the fine sand and metal fragments are discharged to the vibrating screen, and then through the vibrating screen, the fine sand falls on the conveyor skin for output, and the metal fragments are recycled. The drum is reversed, and the hatch is opened to discharge the casting to complete sand cleaning.

No	Content		Main Parameter	Note
1	Roller sand remover	Roller Diameter	1450mm
		Loading weight (easy to roll parts)	About 750kg
		Roll speed	5r/min
		Motor power	7.5Kw
		Cleaning time per time (adjustable)	3-15min
		Feeding method	Pit free trailer lifting
		Unloading mode	Drum reversal
		Dust removal power	5.5kw
2	Charging elevator	Lifting height	2.5m
3	Vibrating screen	Vibration motor power	0.37kw 5000N
4	Belt conveyor	Belt width	500mm	Optional
		Motor power	1.5kw
		Tape speed	0.5M/S
5	Size	7000*2070*3100mm

Detailed Photos
