China Factory Machine High Production Automatic Blowing Machine Pet Water Bottle Making Machine with Low Price

Product Description

Products Description

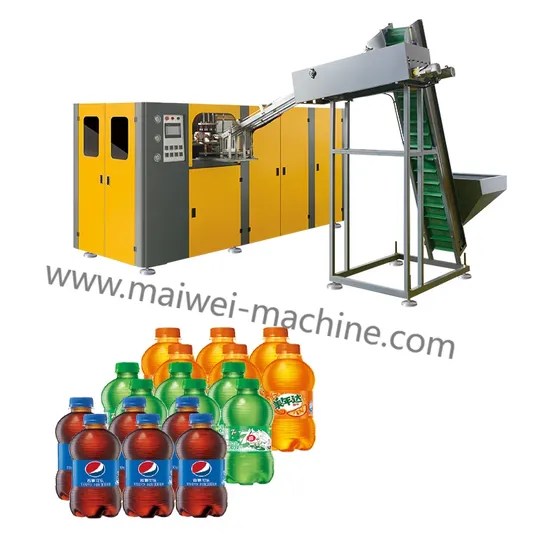

Automatic Bottle Blow Making Machine Introducing our state-of-the-art fully automatic high-speed blow molding machine, designed to transform your production line with its incredible efficiency. Capable of swiftly molding bottles ranging from 20ml to 2 liters, this machine boasts a sophisticated design and expertly engineered components to ensure a seamless and steady blowing process. Enjoy the benefits of uniform heating via a layered preform heating system, coupled with intelligent automatic fault detection and alarm systems that empower efficient control and guarantee stable production.

Features * Experience the versatility of our Blowing Machine, which facilitates the creation of various bottle sizes with an upgraded design and smooth, vibration-free operation.
* Our hydraulic mold system enhances machine stability with its intricate design, providing impeccable clamping and robust operation.
* Benefit from a meticulously tuned air control system that ensures consistent airflow throughout the entire operation.
* Elevate your production with the precision cooling device that attaches to the bottleneck, offering targeted cooling post-molding for the most accurate shaping.
* The high-efficiency servo motors facilitate the effortless stretching of preforms, ensuring swift and precise stretching strokes every time.

Product Paramenters

Model		Unit	MW-F6-650	MW-F6-2000	MW-F8	MW-F9
Clamping System	Number of cabity	cavities	6	6	8	9
	Clamping unit	KG	56000	65000	96000	98000
	Mold stroke	mm	90	125	90	90
	Stretching stroke	mm	260	330	260	260
	Bottom stroke	mm	50	50	50	50
	Cavity pitch	mm	76.2	114.3	76.2	76.2
	Number of holder	PCS	106	106	152	152
Container	Max.container volume	ml	650	2000	650	2000
	Max.container height	mm	260	330	260	260
	Max.container diameter	mm	68	105	68	105
	Max.prefrom height	mm	100	140	100	140
	Max.neck diameter	mm	38	38	38	38
Theoretical		B/H	7200	6000	9600	11000
Electrical System	Heating oven qty	PCS	4×4	8×8	8×8	8×8
	Number of lamp	PCS	4×8	8×9	8×8	8×8
	Heating power	KW	64	96	96	96
	Installed power	KW	69.5	100	100	110
	Voltage	Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0
	High pressure air consumption	L/min	5.0/30	5.0/30	7.2/30	7.2/30
	Power	KW	60	60	75	80
Chiller System	Temperature		9-13	9-13	9-13	9-13
	Pressure	mpa	0.4	0.4	0.6	0.6
	Power	HP	5	5	8	8
Machine	Machine dimension	M	4.0×2.1×2.2	5.8×2.1×2.2	6.0×2.1×2.2	6.5×2.1×2.2
	Machine weight	KG	6000	7000	7500	8500

Packing and Shipping

Packaging: Our robust wooden packaging safeguards the machine from impacts and damage, while a protective plastic film shields it from moisture and corrosion. The fumigation-free package streamlines customs clearance, and larger machines are securely fixed within containers without additional packaging.
Shipping: For LCL shipments, our trusted logistics team ensures a swift and secure transit to the port. When shipping via FCL, we expertly obtain and load containers with the utmost care. Our professional and long-standing partnerships with forwarders facilitate smooth shipment processing, promising seamless coordination for your convenience.
Customization Service
We offer bespoke process plans tailored to your product, complete with meticulously crafted mold designs to guarantee a perfect match between the bottle cap (injection mold) and body (blow mold).
Utilize our high-precision machining centers for mold fabrication that boasts an exceptional cooling effect. Enjoy complimentary proofing services, exquisite production technology, and stringent quality standards.
Company Profile
Maiwei has dedicated years to advancing blow molding technology, consistently refining our expertise to deliver equipment that embodies stability, energy efficiency, and durability. Our diverse product range spans dairy product bottles, wine bottles, oil bottles, detergent bottles, engine oil bottles, sprayers, hollow toys, and other hollow plastic items. At Maiwei, we do more than supply equipment; we provide solutions to your blow molding challenges. Our machines, adaptable in application, allow for modifications to the air source system according to your needs, delivering impressive flexibility, low energy consumption, and exceptional efficiency.
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.
