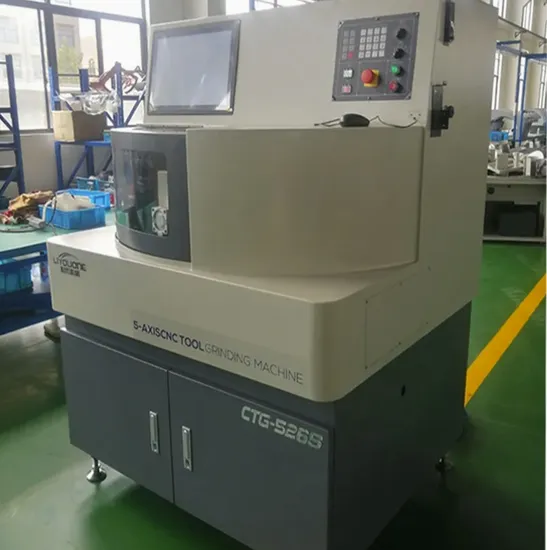

CNC Tool Grinding Machine Ctg-520s/526s/536s Series with Five-Axis Tool Grinder

Product Description

SPECIFICATION

	CTG-520S/526S/536S	CTG-520SP/526SP(Pneumatic Style)
X-axis route:	300mm	300mm
Y-axis route:	160mm	160mm
Z-axis route;	160mm	160mm
C-axis route:	-190-45°	-190~45°
A-axis route:	00	00
Control motor type:	servo motor x5 axis	servo motorx5 axis
Spindle power:	2.5kw	2.5kw
Spindle maximum RPM:	8000	8000
Tool maximum length:	330mm	220mm
Dimension/Weight:	1300*1200*2000mm/1720kg	1300*1200*2000mm/1720kg

Product Description
FEATURE
- Original developed operation software,3D graphical interface is intuitive
- Automatic wheel trimming
- Tool automatic honing
FUNCTION
- 5 axis CNC linked motion,used for producing/resharpening high precision CNC tool/instrument/accessory
- Application type:end mil,drill bit,ball end mill screw tap,pagoda drill,plate drill center drill engraving tool gun-drill,boring cutter,cutter blade,medical instrument,etc.
- Clamp diameter range:CTG-52051-20mm/52651-26mm /53651-36mm/526S Pneumatic Style 1-25mm
- Tool maximum flute length:110mm
Our Factory
Exhibition
With the advantages of product easy operation, high grinding precisicon, high quality reliability and perfect after-sales service, the products are widely recognized by the cu:stomers in Germany, Russia, Malaysia, Japan, Jordan, Israel, Indonesia, India, Singapore, Taiwan, HongKong and other countries and regions.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service* Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping1.The innermost layer is EPE pearl cotton film package. 2.The middle layer is wrapping up with environmental protection material . 3.And the outermost layer is winding up with PE stretch film. 4.They're very environmentally friendly. 5.If you need a wooden box, we will make a wooden box.Delivery Detail: Shipped in 25-30 working days after payment.
FAQ
Q:What's your main products of your company?A:We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC MillingMachine,CNC TurningMaching, Vertical Machining Center ,Horizontal MachiningCenter, Lathe Machines, Turning andmilling composite processing so onQ:Where do you export?A:The whole world.Q:Could you produce non-standard products?A:Yes, we can. Please supply samples or drawing.Q;How do you transport it?A:Provide Transportation Solution DDP/CIF/FOB/FCAQ: What's the Payment Terms?A:T/T ,30% initial payment when order,70% balance paymentt before shipment.Q:What's the MoQ?A:1 set .(Only some low cost machines will be more than 1 seet )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for ourevaluation if possible, better to send us workpiece drawing, so that we canrecommend you most suitable model!2.lf need CIF Price, please kindly tell us the port of destination
