Zw7-40.5 Series Outdoor High Voltage Vacuum Circuit Breaker, 35kv Transmission and Distribution System

Product Description

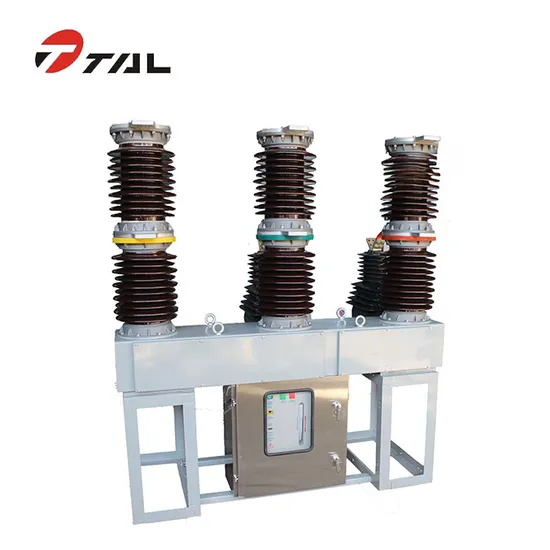

ZW7-40.5F(M) Outdoor High Voltage Intelligent (Permanent Magnet) Vacuum Circuit Breaker
Product Overview
The ZW7-40.5F(M) is an outdoor high-voltage intelligent vacuum circuit breaker designed for medium-voltage overhead power lines. It integrates split-pole structure with a highly reliable spring or permanent magnet operating mechanism, enabling efficient load current switching, overload protection, and short-circuit interruption. Ideal for smart grid applications, it ensures reliable power distribution and system stability.
Key Features and Applications:
1. Innovative Design
• Utilizes split-pole structure combined with spring or permanent magnet operating mechanisms for enhanced reliability and reduced maintenance.
• Compact modular design simplifies installation and adapts to diverse grid configurations.
2. Smart Functionality
• Supports remote control and automation integration, compatible with distribution automation systems for rapid fault isolation and power restoration.
• Equipped with intelligent controllers for real-time monitoring and data analysis to optimize grid performance.
3. Robust Environmental Adaptability
• Corrosion-resistant steel enclosure ensures durability in harsh outdoor conditions (e.g., humidity, temperature extremes).
• High seismic resistance, compliant with seismic intensity requirements up to magnitude 8.
4. Versatile Applications
• Suitable for substations, industrial plants, and urban/rural distribution networks for line protection and control.
• Ideal for frequent operation scenarios, including ring main systems, branch lines, and user responsibility demarcation points.
Combining reliability, intelligence, and flexibility, this product delivers a secure and efficient solution for modern power transmission and distribution systems.
Standard Specification
(It can be customized according to customer's local demand!)
1. Technical parameter table:
The ZW7-40.5F(M) circuit breaker supports a maximum voltage rating of 40.5kV, combining 1250/1600A rated current and 25/31.5kA short-circuit breaking capacity with dual operating mechanisms (permanent magnet/spring) to deliver reliable protection for medium-voltage grids. Customization options span all core parameters: Current & Breaking Capacity: Support for extended rated current and higher short-circuit breaking capacities (e.g., 40kA); Operation & Control: Optional spring mechanism instead of permanent magnet configuration, compatible with multiple voltage control requirements such as DC 110V/220V; Functional Expansion: Addition of disconnectors and built-in voltage transformers for comprehensive grid monitoring and protection; Environmental Adaptation: Custom solutions for high-altitude (>1000m) and high-pollution (Class IV) environments ensure stable operation in harsh conditions. Backed by over 30 years of experience in power equipment R&D, our technical team responds rapidly to customer needs, leveraging modular design and rigorous validation processes to ensure reliability and cost-effectiveness of customized solutions. This empowers clients to maintain a competitive edge in smart grid development.

2. Outline and installation size:
3. Product Display:
More Product: https://tldq5978.en.made-in-china.com
Ex-factory Quality Assurance Routine test:Measurement of winding resistance,Measurement of voltage ratio,Check of vector group,Measurement of impedance voltage and load loss,Measurement of no - load loss and current,Separate-source voltage withstand test,Induced overvoltage withstand test,Dimension checking. Type tests:Lighting impulse test,Temperature rise test. Special tests:The company is accelerating the cultivation and development of productivity, and creating high-level intelligent production. Know More About Our Company
Define-TAILI
Total Solution is how we define "TAILI". From design & customization, engineering, manufacturing, installation, to after - sale service. TAILI provides a Total Solution to our customers, helping and supporting them to gain a competitive advantage in their market.
TAILI, founded in 1988,is one of the largest and most respected manufacturers of MV power distribution products in Wenzhou, China, the "Electric Industry Center" of China. We have factories for manufacturing, research &development, and distribution of products: Transformers, Indoor&outdoor switches, Switchgears, Power substations, and electric components for transformers and switchgears.
Our mission at TAILI is to provide the highest - quality products at the best possible price. And by doing so, to provide an unmatched customer experience and actively establish long-term cooperative relationships with our new and old customers.
Our Advantages
Design Ability:Our design team can combine the needs of customers from East Europe, Africa, South America, the Middle East, Southeast Asia and other regions to customize transformers for different local market demands. As a Chinese manufacturer with more than 25 years' experience, we can produce transformers with European quality at a very competitive price, and perfectly replace imported products from Europe, so that users can use high-quality power products at the lowest cost to gain more advantages in their market.
Efficient Service: With 15 years of experience in the electrical line, we are committed to providing comprehensive technical support, design and customized solutions for our partners. And provide timely service for each step within 24 hours from design,production, logistics installation, etc..,to ensure clients an efficient and smooth operation of the projects! Partners' recognition is the motivation and encouragement for us. We attach importance and pursue giving one-stop service!
Certifications
Attention
1. The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2. The delivery time: Usually it will take about 15-20 days.
3. The standard of package: Usually use strong plywood cases for protection.
4. The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, there are differences between the two when they work well. Except for the long - life factor, copper is better and also has a higher price.
5. The logo: If you have a good quantity, it is absolutely no problem to do OEM.
6. Our market: Our products are popular in Indonesia, the Philippines, Russia, the USA, the Middle East and so on. Some of them are our regular customers and some are in the process of development. We hope you can join us and make mutual benefits from our cooperation.
7. Warranty: within 12 months since BL date.
FAQ
Q1: Are you a manufacture or trading company?
A1: Yes, we are a manufacturer dedicated to designing customized products according to different country standards and producing a wide range of high - quality transformers, switchgears, and power substations. Meanwhile, we can also provide relevant accessories and components with guaranteed quality from our branch factories. We improve the design to make our products more competitive in the market while ensuring better quality for long - term performance.
Q2: How does your factory do regarding quality control and after-sales support?
A2: All the products will be 100% checked and tested before delivery. We also have an inspection team to make videos with customers online or via email. All our products comply with strict tests, and easy maintenance is guaranteed. We also offer online after-sale service in case of any further problems.
Q3: When can I get the price?
A3: Usually we quote within 1 hour after we get your inquiry. For customized products that need special design, we will quote within 12 hours with detailed specifications for confirmation.
Q4: Can you manage the delivery directly to our country with DIP term?
A4: Yes, we have our own Logistics company that helps to find a better solution for delivery and that makes the delivery time more punctual and at a lower cost.
Q5: Can I get guarantee of products after delivery?
A5: Yes, every product is 2-3 years' quality - warranted under customers' correct use of the products.
Q6. Do you have any Certificate?
A6: Yes. Each of our products has CE, 3C and CQC certificates. If you need any other certificates, we can help you to apply for them.
Q7: How can I pay you?
A7: The payment by T/T and L/C is acceptable.
