Advanced Ku Band Air Surveillance Radar for Situational Awareness

Product Description

Basic Information

Model NO.	AZ5812A06
Operating frequency	Ku Band
The frequency point is adjustable	Yes
system	Digital beamforming
Detection power	≥5km (RCS=0.01)
Minimum detection altitude	10m
Distance blind zone	≤70m
Azimuth range	360°
Pitch range	30°
Data rate	Search 2s track 10Hz
Measuring range	0.5~250m/s
Range accuracy	5m
Azimuth and pitch accuracy	0.3°
Velocity measurement accuracy	0.5m/s
Detection probability	90%
False alarm probability	10-6
Gaze function	Be equipped with

overview

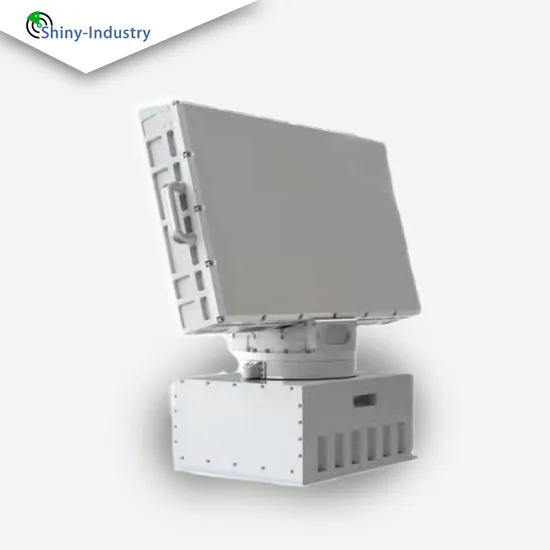

AZ5812A06 type security radar is a three-coordinate low-altitude UAV detection radar, working in the Ku band, is a radar system that can detect and early warning at low altitude, slow speed and small targets (referred to as low slow small targets) all day long. The radar adopts digital beamforming system, azimuth mechanical scanning covers the whole airspace of 360°, and fast phase scanning in pitch achieves a wide range of airspace coverage. Full range, high precision and stable detection of low and slow small targets such as unmanned aerial vehicles, real-time acquisition of target distance, azimuth, altitude and speed information. FEATURES 1) Experience unparalleled 360° global monitoring with our radar's constant-speed servo scan. Effortlessly detect airborne targets like drones and balloons, track them with precision, and establish robust navigation paths. Gain comprehensive insights with detailed measurements of distance, angle, altitude, and speed, all promptly relayed to the command terminal for swift decision-making.
2) Precision at its best: Engage the single target tracking mode post-capture for immaculate precision. Switch seamlessly to tracking mode and maintain an enviable data rate of just 1 second for your target of interest, ensuring nothing escapes your watchful eye.
3) The radar output is your guide to mastery, directing the identification, verification, and management of optoelectronic systems, among others. It elevates your operational capacity across various platforms.
4) Harness the power of self-reliance with autonomous search and automatic tracking conversion. Enjoy the luxury of fully automated, unmanned operations, perfect for conventional background environments.
5) Designed for ease and efficiency, our system is lightweight, portable, and characterized by rapid deployment capability, ideal for vehicular use. Weighing approximately 30kg, the system promises quick setup and dismantle by a single operator, ensuring fast mobile deployment. The roof-mounted radar and gimbal are apt for vehicular applications, enhancing your operational flexibility.
6) Embrace expansive coverage and adaptive deployment with our radar's unparalleled capabilities.
The ambitiously designed radar offers a maximum azimuth coverage of 360°, coupled with a 30° elevation range. Whether it's 360° circumferential scanning or sector-focused monitoring, this radar seamlessly adapts to your needs for comprehensive oversight.
Functions 1) 360 ° Global Low Altitude Monitoring and Detection:
Harness the power of comprehensive 360 ° global surveillance with our radar's remarkable monitoring mode. Effortlessly sweeping the skies, the radar meticulously scans the entire airspace, identifying airborne threats like drones and balloons. It tracks these targets, meticulously building navigational data, while precisely measuring critical parameters such as distance, angle, altitude, and speed. All this information is promptly relayed to the command terminal, ensuring timely and informed decisions with unmatched efficiency.
2) Precision Target Tracking: Once the radar locks onto a target, it seamlessly transitions into a dedicated tracking mode, maintaining a sharp and precise focus on the target of interest. With an impressive data rate of 1 second, it ensures ceaseless and accurate observation.
3) Guided System Integration: The radar's output serves as a strategic guide, directing the identification, confirmation, and operational handling of optoelectronic systems and other correlated technologies.

Technological Advantages
1) Unparalleled 360 ° Monitoring and Detection: Dive into the radar's exceptional 360 ° global monitoring prowess, where it diligently scans the entire airspace with precision. Identifying airborne entities like drones and balloons, the radar expertly tracks and constructs navigational insights, while evaluating vital information such as distance, angle, altitude, and speed. This data is instantaneously communicated to the command center, facilitating prompt and actionable intelligence.
2) Impeccable Single Target Tracking: Following the radar's acquisition of a target, it adeptly switches to tracking mode, pursuing the target with unwavering precision. Achieving a rapid data rate of 1 second, it ensures continuous and focused surveillance.
3) Strategic Radar Output: The radar's output is instrumental in guiding the identification, confirmation, and strategic resolution of optoelectronic systems and other systems, ensuring cohesive and effective operations.
4) Autonomous Operation Capabilities: Equipped for autonomous search and automatic tracking conversion, our radar excels in delivering fully automatic, unmanned operations in standard operational environments.
5) Lightweight, Portable, and Vehicle-Compatible: Embrace the ease of rapid deployment and installation with our compact radar system. Weighing approximately 25kg, it is designed for swift setup and removal by a single operator, facilitating fast mobile deployment. The radar and gimbal can be mounted on a vehicle roof, expanding its application versatility to vehicular use.
6) Expansive Coverage and Versatile Deployment:
Experience remarkable spatial coverage with a maximum azimuth range of 360 ° and elevation coverage of 30 °. This flexibility supports 360 ° circumferential scanning and is adaptable for focused sector monitoring, ensuring comprehensive surveillance capabilities
