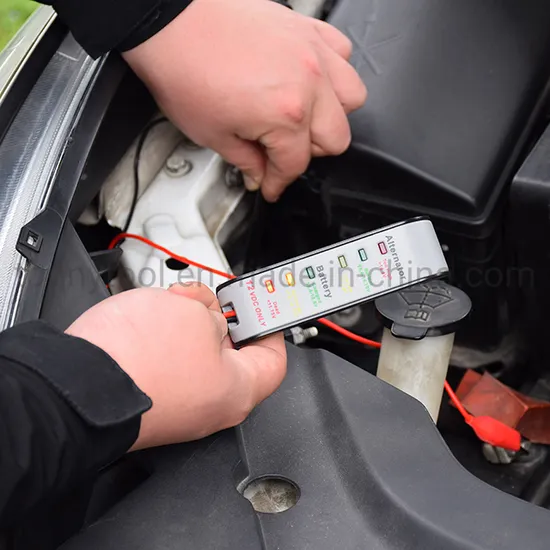

Auto 12 Volt Battery Voltage Tester Charging System Analyzer Monitor

Product Description

Battery test
A. With engine off, touch the positive battery post with the red probe and the negative battery post with the black probe.
B. The glowing light will show battery condition.
TECH TIP: Some heavy duty high output batteries may show a reading above the number 3 light,
causing the number 4 light in the alternator section to glow. This does not indicate a problem.
Alternator Test
A. With engine running, touch positive battery post with the red probe and the negative battery post with the black probe.
B. The glowing light will show alternator output.
C. Light numbers show the following:
1. Bad alternator diode.
2. Normal condition.
3. Loose or slipping belt.
4. Normal condition.
5. Loose alternator bolt, corroded battery terminals.
6. Battery needs charge or cell is shorted.
TECH TIP: Always be sure belts are tight.

Specifications

Model	TE6-0604
Voltage	12V
Type	Auto Battery Tester & Analyzer
Function	Test or Analyze Car Batteries
Material Type	ABS Plastic
Test battery	Lead-acid starter battery
Application	Battery Internal Resistance Testing
Usage	For all12-volt negative ground system

Dimension
