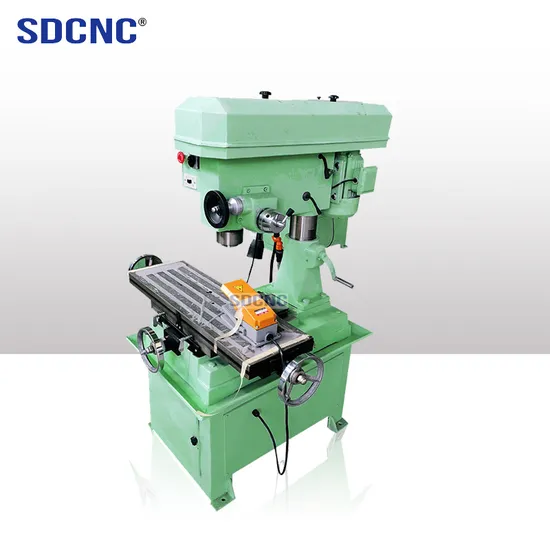

High-Accuracy Medium Duty Milling Drilling Machine Zx40 Drilling and Milling Machine Tool

Product Description

The main performance characteristics: 1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual
micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
SPECIFICATIONS

ZX40 Drilling Milling Machine Technical Date
Max. drilling capacity	Iron Ø40mm Steel Ø32mm
End milling capacity	Ø32mm
Face milling capacity	Ø80mm
Spindle taper	MT4/R8
Spindle travel	120mm
Range of spindle speed	75~1600rpm/75~3200rpm (Optional)
Head tilt left and right	±90°
Step of spindle speeds	6 /12 (Optional)
Automatic spindle feeds	0.1/0.18/0.26mm/r (Optional)
Working table size	730×210mm
Dimension base	650x450mm
Worktable X/Y-Axis travel	500×190mm
T-slot	12mm
Distance between spindle and column	260mm
Max distance spindle to table	610mm
Motor power	1500w
Cooling motor	40w (Optional)
Packing size	830×760×1850mm
N.W/G.W	340/390kg
