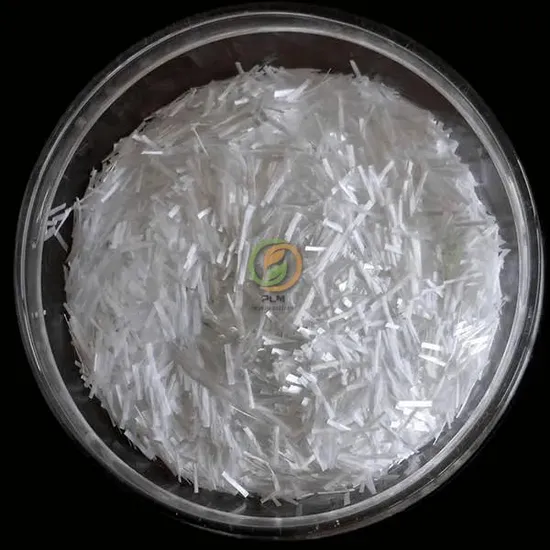

Chopped Fiberglass Strand for Thermoset and Thermoplastic for BMC and Extrusion

Product Description

Chopped Strands are produced by cutting strand bundles, which are made of 50 to 200 fine ARG fiber filaments, into various length. It is used as reinforcement for Glassfiber Reinforced Concrete (GRC), Calcium Silicate and Slag Gypsum products. It is also used as crack control material for normal concrete and cement mortar. Its high alkali and acid resistance can be applied to glass fiber papers and filter
Chopped Strands are made by bundling thousands of E-glass fiber together and chopping them into specified length. They are coated by original surface treatment designed for each resin to increase the strength and physical properties. Chopped Strands are used in combination with high-performance resin with a certain content, applied to FRP (Fiber Reinforced Plastics) and FRTP (Fiber Reinforced Thermo Plastics) for automobiles and electronics as reinforcing materials globally.
Product Lsit

Item No.	Chop Length,mm	Features	Typical Application
BH-01	12,18	Excellent dispersion and good mechanical properties of composite products	Reinforced gypsum

Identification

Type of Glass	E6
Chopped Strands	CS
Filament Diameter,μm	16
Chop Length,mm	12,18
Sizing Code	BH-Wet CS

Technical Parameters

Filament Diameter (%)	Moisture Content (%)	Size Content (%)	Chop length (mm)	Choppability (%)
ISO1888	ISO3344	ISO1887	Q/BH J0361	Q/BH J0362
±10	10.0 ± 2.0	0.10 ± 0.05	±1.5	≥ 99

FOR BMC
Short Description:1.Secially designed for reinforcing unsaturated polyester, epoxy resin and phenolic resins.
2.Widely used in transportation, construction, electronics,chemical industry and light industry. Such as the automotive parts, insulator and switch boxes.E-Glass Chopped Strands for BMC are specially designed for reinforcing unsaturated polyester, epoxy resin and phenolic resins.
Features
Good strand integrity
Low static and fuzz
Fast and uniform distribution in resins
Excellent mechanical and processing properties
BMC Process
A bulk molding compound is made by combining glass chopped strands, resin, filler, catalyst and other additives, This compound is processed by compression molding or injection molding to form the finished composite parts
Product List

Item No.	Chop Length,mm	Features	Typical Application
BH-01	3,4.5,6,12,25	High impact strength, high LOI rate	Automotive parts, civilian electrical switches, electric tools, artificial marble platform boards and other products requiring high strength
BH-02	3,4.5,6,12,25	Suitable for the dry mixing processing, high strand integrity High strand stiffness, compatible with rubber	Friction materials, Products with superior friction coefficiency, including tires
BH-03	3,4.5,6	Extremely low resin demand, delivering low viscosity to BMC paste	High fiberglass content products with complex structure and superior color, e.g., ceiling, artificial marble platform boards and lampshades

Identification

Type of Glass	E
Chopped Strands	CS
Filament Diameter,μm	13
Chop Length,mm	3,4.5,6,12,18,25
Sizing Code	BH-BMC

Technical Parameters

Filament Diameter (%)	Moisture Content (%)	LOI Content (%)	Chop length (mm)
ISO1888	ISO3344	ISO1887	Q/BH J0361
±10	≤0.10	0.85±0.15	±1.0
