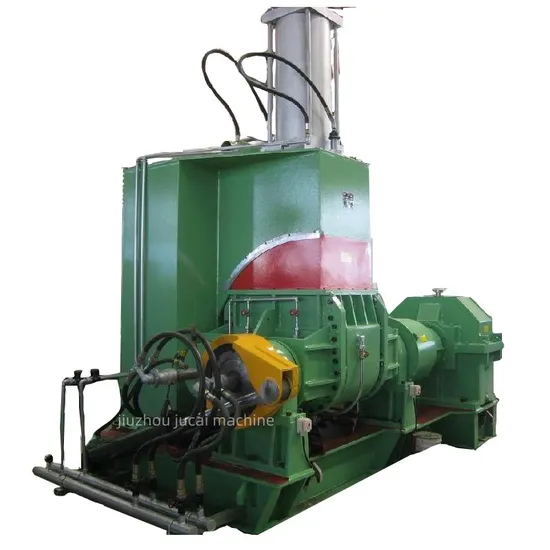

Rubber Banbury Mixer Machine Kneader Machine

Product Description

rubber banbury mixer machine kneader machine
Product Description The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models
working volume : 1.5L,3L,5L,10L,20L,25L,35L,55L,75L,95L,110L,150L,200L,300L
Front roller speed : 30 r/min ,32 r/min ,40 r/min
Tilting drive type : worm gear pair drive , hydraulic drive
Main drive type : Left hand drive , right hand drive
Heating / cooling type : steam heating / water cooling ,warm water circulating heating / cooling ,electri heating / water cooling,oil heating / cooling
Gearbox type : Medium carbon alloy steel mid hard teeth gearbox / low carbon alloy steel hard teeth gearbox

model	X(S)N-25	X(S)N-35	X(S)N-55	X(S)N-75
Total volume of chamber	50L	75L	125L	180L
working volume of chamber	25L	35L	55L	180L
main motor	37 kw	55kw	75 kw	110 kw
tilting motor	1.5 kw	2.2 kw	3.0 kw	4.0 kw
tilting angel	135	140	140	140
rotor rotated speed	32/25	30/24.5	30/24.5	30/24.5
pressure of compressed air	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
cooling water pressure	0.3-0.4 Mpa	0.3-0.4 Mpa	0.3-0.4 Mpa	0.3-0.4 Mpa
cooling water consumption	6-10	8-12	10-15	18-20
machine weight	4500 kg	6500 kg	7500 kg	10300 kg
