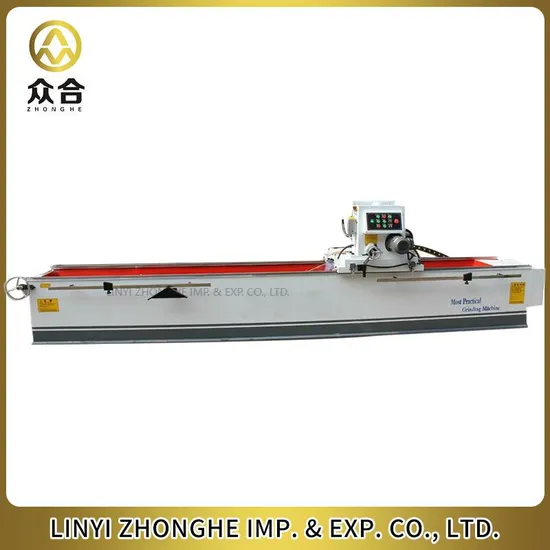

Automatic Knife Grinder for Peeling Knife Woodworking machine Machine Tool

Product Description

Product Parameters

1	Model	M3200
2	maximum knife length	3200 mm
3	working table size	3180*180 mm
4	grinding wheel size	200*100*32 mm
5	grinding precision	less than 0.5 mm
6	electricity standard	380 V, 60 HZ,3 phases
7	grinding head travel speed	17 meters per minute
8	grinding head angle	±10 degree
9	working table angle	±90 degree
10	grinding head transmission	belt drive
11	grinding head motor	4 KW
12	stroke travel motor	0.75 KW
13	lifting motor	0.75 KW
14	water pump motor	0.125 KW
15	total motor power	5.5 KW
16	gross weight	2800 KGS
17	machine size	5350*1300*1300 mm

Detailed Photos

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine. 4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener

Certifications
Packaging & Shipping

Frequently Asked Questions
1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.
