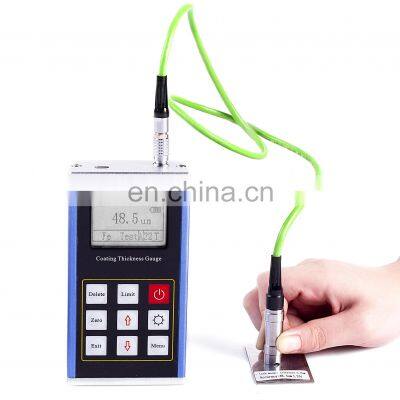

L230 Coating Thickness Gauge Fe & NFe probe Coating Meter

Product Description

Product Description
Product DescriptionL230 Coating Thickness GaugeOverviewCoating thickness gauges are widely used in the fields of electroplating, anticorrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, and commodity inspection. It can be used not only in the laboratory but also on the engineering site. Configure different probes, suitable for different occasions. It is an essential instrument in the nondestructive testing industry. Function:The magnetic measurement method can be used to detect the thickness of the non-magnetic coating on the magnetic metal substrate (such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steel) 1. Full English menu; 2. Two working methods; 3. Data deletion function; 4. Automatically alarm the measured value outside the limit; 5. Power supply undervoltage indication; 6. Manual and automatic shutdown modes 7. Two measurement methods; 8. Can store 500 measured values; 9. The limit can be set.ModelL230Probe typeF1Working principleMagetic inductionMeasuring range0~1250μmLow resolution0.1μmIndication errorOne point calibration±（3% H + 1）Two-point calibration± [(1 ~ 3%) H + 1]Test ConditionsMinimum radius of curvature mmConvex 1.5, concave 9Minimum area diameter mmΦ7Basic critical thickness mm0.5working environmenttemperature0 ~ 40 ℃humidity20% ~ 90%power supplyAA type alkaline battery 1.5V twoshellmetal shellDimensions150 × 55.5 × 23mm (host)weightF1 / 320gStandard configurationHost, standard test piece, substrate, AA type alkaline battery, probe F1Company ProfileCANGZHOU LOVELY GROUP CO., LTD. is located in Cangzhou City, Hebei Province, China. A leading manufacturer of Scaffolding & Formworks accessories, Ring-lock Shoring System, Testing Machine for construction projects, industrial engineering, roads and bridges etc. Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQ Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have?A:We have ISO 9001. Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering?A:General it is about 7-20 days. Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
