CNC Gear Spare Parts Suj2 Bearing Steel Linear Motion Bearing Shaft

Product Description

Chrome plated induction linear shaft, hollow shaft and flexible linear shaft
Company ProfileLishui Wangong Precision Machinery Co., Ltd.
About US: Professional producing Ball screw, Linear guide, linear shaft, Linear roller guide and linear motion bearings
Lishui Wangong Precision Machinery Co., Ltd was founded in 2008 and is located in Lishui City, Zhejiang Pro. China. We ahve built a R&D and profuction base of more than 52000m2 , Our expertise lies in manufacturing precision transmission components, As a distinguished high-tech enterprise, we seamlessly integrate research and development, production, sales, and service. We have successfully incorporated advanced equipment and cutting-edge technologies from renowned countries like Germany, Japan and Taiwan.Product Description
1, Linear shaft description
ERSK Linear offers linear shafting in a variety of different options to meet a wide range of customer needs. Available in hardened steel, CK45 material steel, SUJ2 material steel, hollow steel , inch and metric, Simplicity Shafting maintains the ideal surface finish for linear plain bearings and ball bearings.
· Solid round shafting is available in inch sizes from 3/16" thru 4" and metric sizes from 3 mm thru 80 mm
· Machining available upon request
High Reliability
ERSK linear shaft has very straight quality control standards covering every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.
Smooth Operation
The high efficiency of linear shaft is vastly superior to conventional shaft. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
High Durability
Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable linear shaft manufactured.
Induction linear shaft, Flexible linear shaft,
linear bearings shaft, hollow linear shaft,
hardened linear shaft, chromed linear shaft
Application
For delicate application in industrial application, machine tool and automation application.
2, There are three kinds of linear shaft in our stock:

Flexible linear shfat

Induction linear shaft

Hollow linear shaft

3, Linear shaft features

Items	Linear shaft	Flexible shaft	Hollow shaft
Material	CK45, SUJ2	CK45	SUJ2
Heat treatment	Induction hardened	Not hardened	Induction hardened
Surface hardness	HRC58±2	HRC15±3	HRC60±2
Surface treated	Hard chrome plated	Hard chrome plated	Hard chrome plated
Precision	h7, g6, h6	h7, g6	h7, g6, h6
Roundness	Max3.0µm	Max3.0µm	Max3.0µm
Straightness	Max5.0µm	Max5.0µm	Max5.0µm
Chrome thickness	20-30µm	30µm	30µm
Roughness	Max1.5µm	Max1.5µm	Max1.5µm
Process machinized	Threading, reduced shaft dia,coaxial holes drilled and tapped, flats-single or multiple, key way, snap ring grooves, radial holes drilled and tapped, chamfering

4, There are many different kinds of machining process we can do:

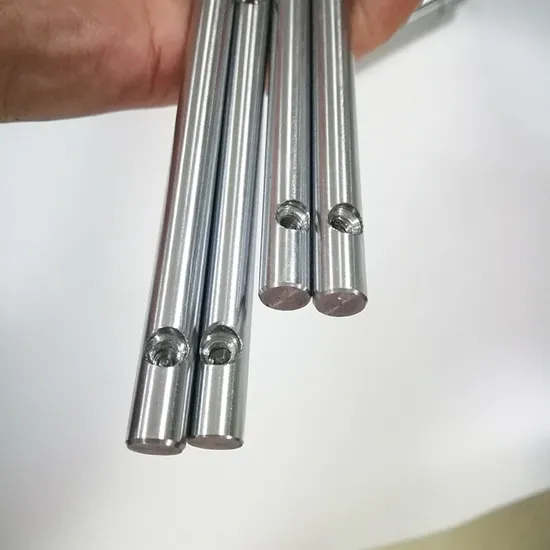

Processing machinized Flats---Single or MultipleProcessing machinized Radial holes drilled and tappedProcessing machinized Coaxial holes drilled and tappedProcessing machinized key wayProcessing machinized Reduced shaft dia and threadingProcessing machinized Snap ring grooves5,Test the quality according to cusdifferent requirements
Straight the linear shaft straightness:
We control the traighness 0.05mm of linear shaft 300mm
Test hardness:
S45C materail induction linear shaft, the hardness is HRC55-58
GCr15 (SUJ2) materail induction linear shaft, the hardness is HRC58-63
If flexible shaft, the hardness is based on the shaft material itself
Test linear shaft surface roughness
the max roughness is Ra0.4um
Test the linear shaft dia precision, as usually, h7 is the normal tolerance in our stock, But we can offer g6, h6 precision too. if any special tolerance, we are able to customize them for you.
6, Data sheet
