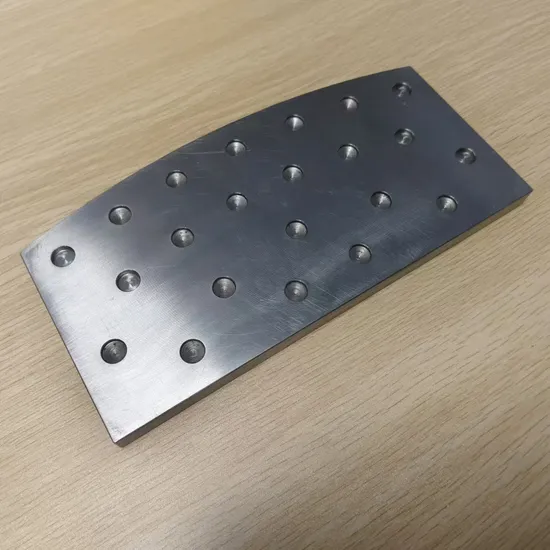

Custom Auto Brake Wind Turbine Generator, High Speed Rotor Brakes

Product Description

Basic parameters:
Braking torque (N.m) = braking force / 1000 x( Φ B/2-83 )
Braking force = 1350 x pressure (pressure ≤ 200bar)
Unilateral setback: 3mm
Pressure in bar Φ B - brake disc diameter (mm)
Technical data:

Working pressure	bar	30	50	60	75	80	100	120
Static force	N	24000	77000	56000	126000	74000	87000	103000 (Pads A ) DADH103-A
Dynamic force	N	18000	55000	42000	85000	55500	65250	77250 (Pads M ) DADH103-M
Fully released shift capacity						cm3		22.7 each piston 5.5cm3
Total volume (worn liner)						cm3		91 each piston 22.7cm3
Weight						kg		60
A						mm		=(ΦB)/2+22

Main features:
1) Adopt fixed installation design;
2) Normally open design, hydraulic power units driving and braking, fast action, safe and reliable;
3) High performance friction material, good temperature resistance and stable friction coefficient;
4) Small braking clearance, short reaction time and faster braking;
5) Oil leakage port is set on the wind turbine caliper disc brake to avoid polluting the brake disc in case of oil leakage, which is safer and more reliable.

Service conditions:
1) The ambient temperature shall be: - 25 ºC - 40 ºC
2) The operating frequency is less than 720c / h.
3) The altitude of the place of use shall not exceed 2000m.
4) There is no explosive medium in the surrounding working environment, as well as gas and conductive dust sufficient to corrode metal and damage insulation.
5) It can be used indoors where the relative humidity of the air is not more than 90% or under rain and snow proof devices.
6) The power supply voltage is dc110v or dc220v. If the user has special requirements, please negotiate and determine when ordering.

Additional points:
1) Wind turbine generator caliper brake uses the pressure control device to adjust and control the corresponding pressure to produce braking;
2) The brake can be equipped with a pad wear automatic adjustment device and a pad reset system;
3) The brake can be equipped with a special device "Ga" to eliminate the vibration caused by very low speed.
Application:
Wind turbine caliper disc brake is mainly used for yaw brake and rotor brake of wind turbine. It is also widely used for deceleration brake and parking brake of various mechanical drives in lifting and transportation, port loading and unloading, engineering vehicles, metallurgy, cable, sling equipment and other industries.
