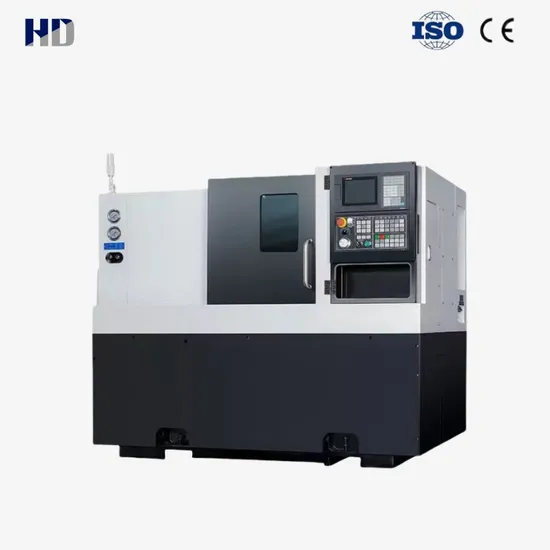

Heavy-Duty CNC Slant Bed Lathe for Large-Scale Metalworking
Basic Info.
Model NO.
SAH4030T
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
High Precision CNC Slant Bed Lathe Machine
Machine Type
Slant Bed CNC Lathe
CNC or Not
CNC
The Title Angle
30 Degree
Swing Over Bed Diameter
450mm
Max. Swing Over Slide
160mm
Z Axis Max Travel
180mm
X Axis Max Travel
300mm
Spindle End
A2-5/A2-6
Spindle Through Hole Dia
48/56mm
Spindle Speed
100-5000r/Min
Tailstock
Yes
Tool Post
Turret
Weight
2600kg
Servo Main Motor
7.5/11kw
Transport Package
Wooden Cases
Specification
2080*1540*1515mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
220.00cm * 176.00cm * 204.00cm
Package Gross Weight
2608.000kg
Product Description
Product PictureSpecification Parameter
| Specification | Unit | SAH4030 | SAH4030T | SAH4042 | SAH4050 |
| The tilt angle | 45° | 45° | 45° | 45° | |
| Swing over bed diameter | mm | 400 | 430 | 400 | 400 |
| Max. swing over slide | mm | 120 | 260 | 120 | 220 |
| Rail width | mm | 286 | 344 | 403 | 363 |
| Z axis max. travel | mm | 400 | 200 | 420 | 500 |
| X axis max. travel | mm | 350 | 400 | 460 | 220 |
| Spindle end | A2-5 | A2-5 | A2-5 | A2-6 | |
| Taper of spindle hole | Morse 6 | Morse 6 | 45 | Morse 6 | |
| Spindle through hole dia. | mm | 56 | 56 | 49 | 62 |
| Spindle speed | r/min | 100-5000 | 100-3000 | 100-5000 | 100-4500 |
| The tailstock | No | Steel clad rail tailstock | No | Hydraulic pressure | |
| Tool post | Gang type | Gang type | 8 station servo turret | ||
| Servo main motor | kw | 5.5 | 5.5 | 5.5 | 7.5 |
| Dimension | mm | 2080*1540*1515 | 1830*1340*1480 | 2140*1600*1680 | 2560*1660*1800 |
| Weight | kg | 1500 | 2300 | 1800 | 2000 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
