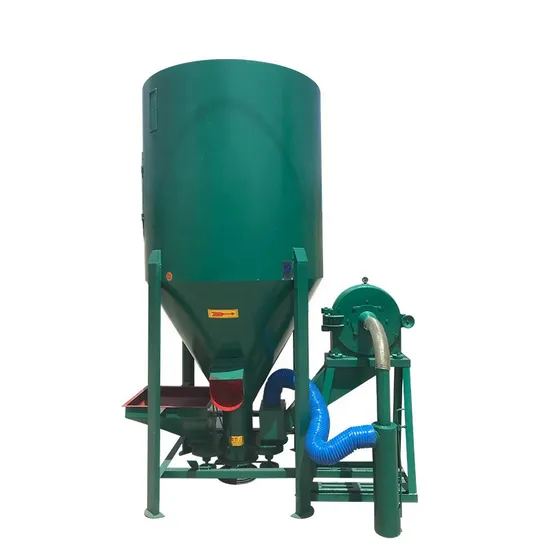

500kg 1000kg Combined Chicken Feed Crusher and Mixer
| US$1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
9FM1000
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
1 Year
Plant Name
Feed Mixer and Crusher
Function
Mixing and Crushing Grain Into Pellet
Application
Chicken Feed or Cattle,Pig Feed
Features
Easy Operate,Low Cost
Structure
Vertical Mixing Tank with Self Absorb Crushing
Capacity
500kg 1000kg 2000kg
Main Power
7.5kw+3kw 11kw+3kw
Feed Process
Crushing,Mixing,Making Pellet
What We Produce
Feed Mixer and Crusher Machine,Pellet Machine
What We Supply
After Sale Service and Operation Guide
Transport Package
Wooden Case Package
Specification
2100*1040*2500mm
Trademark
DB Elephant
Origin
Made in China
Production Capacity
500sets/Month
Packaging & Delivery
Package Size
210.00cm * 104.00cm * 250.00cm
Package Gross Weight
150.000kg
Product Description
500kg 1000kg Combined chicken feed crusher and mixerIntroduction
9FH-series feedstuff machine complete set equipment have vertical type, horizontal type and single phase 300,500 which can be applied to process feedstuff in the farm.this machine is with developed design, rational construction, steady function, easy maintance, which combined mixing, winnowing, throwing together.the madeup feedstuff is with uniform component, high effiency, little occupy,little labor,small dust, good sealed.
Working principle
This feedstuff machine is combined by grinding and mixer.
1. Crushing part: feeding automatically or manually. When the material is sucked or conveyed to the crushing space, the material will be quickly crushed into powder or pellet with the continuously beat by the rolling pieces and gathering, bumping and beating of the crushing room, then it will enter into the A leaf box by the role of centrifuge air.
2. Mixing part: When the pushing devices rotate, the material and B leaf chamber will forced feeding, when it was stepped up by rotating to the top of the box, it will form a mixing process of the materials were moved to the uniformity of dispersed atomized inside mixing of the materials up and down movements and the right rotation broadcast. The effect is ideal and very satisfactory.
Main data of the machine:
| Model | 9FM500 | 9FM1000 |
| Mixing silo volume | 500kg/batch | 1000kg/batch |
| Main power | 7.5kw+3kw | 11kw+3kw |
| MACHINE SIZE | 2100*1040*2500mm | 2250*1360*2500mm |
