US$0.15
100,000-399,999 watt
Basic Info.
Model NO.
TR JKM475M-7RL3-V
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Cell Type
P Type Monocrystalline
Glass
3.2mm Tempered Low Iron
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm,Anti-Reflection Tempered Glass
Output Cables
TUV 1*4.0mm 2 (+): 290mm , (-): 145 mm
Transport Package
31PCS in a Carton
Specification
2182*1029*35mm
Production Capacity
800mwatt/Years
Packaging & Delivery
Package Size
230.00cm * 130.00cm * 112.00cm
Package Gross Weight
1000.000kg

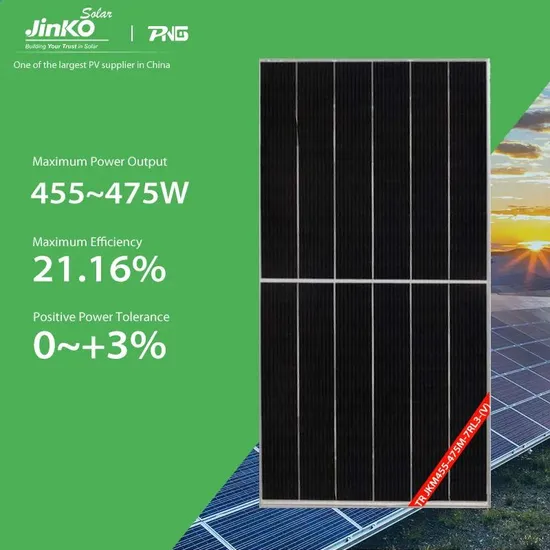

Product Description
Product Description
Module Type | JKM460M-7RL3 JKM460M-7RL3-V | JKM465M-7RL3 JKM465M-7RL3-V | JKM470M-7RL3 JKM470M-7RL3-V | JKM480M-7RL3 JKM480M-7RL3-V |
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
Rated output(Pmp/Wp) | 460Wp | 342Wp | 465Wp | 346Wp | 470Wp | 350Wp | 480Wp | 357Wp |
Maximum power voltage(Vmp/V) | 43.08V | 39.43V | 43.18V | 39.58V | 43.28V | 39.69V | 43.48V | 39.90V |
Maximum power current(Imp/A) | 10.68A | 8.68A | 10.77A | 8.74A | 10.86A | 8.81A | 11.04A | 8.95A |
Open circuit voltage(Voc/V) | 51.70V | 48.80V | 51.92V | 49.01V | 52.14V | 49.21V | 52.34V | 49.40V |
Short circuit current (Isc/A) | 11.50A | 9.29A | 11.59A | 9.36A | 11.68A | 9.43A | 11.86A | 9.58A |
Module efficiency (%) | 20.49% | 20.71% | 20.93% | 21.38% |
Detailed Photos
Projects
Production view
Factory
Certifications
Contact
FAQ.
1. Who are we?We are based in Anhui, China, start from 2015,sell to Southern Europe(40.00%),Southeast Asia(20.00%),Africa(18.00%),Domestic Market(2.00%),South Asia(2.00%),North America(2.00%),Northern Europe(2.00%),Central America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Oceania(2.00%),Eastern Europe(2.00%),South America(2.00%). There are total about 101-200 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?Solar Panel,Solar System,Battery,Inverter,Wi Fi RTU4. Why should you buy from us not from other suppliers?Hefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production and sales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,PayPal;Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
