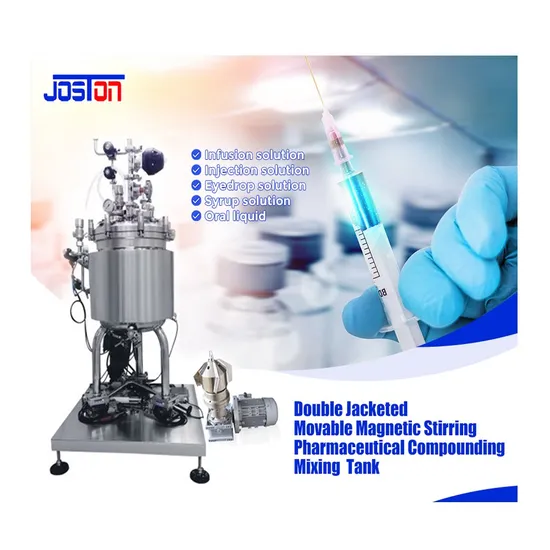

Joston Bottom Magnetic Mixing Tank 304 316L 1000 Liter High Efficient Movable Bottom Magnetic Mixing Tank

Product Description

Pharmaceutical Solution Mixing Tank Reaction Kettle Mix Tank With Agitator Stainless Steel Double Jacketed Magnetic Stirring Tank Pharmaceutical Solution Mixing Tank Reaction Kettle Mix Tank With Agitator Stainless Steel Double Jacketed Magnetic Stirring Tank is used to mix one or several materials together according to the technological proportions. Which can fit pharmaceutical and food industrial GMP & FDA requirement .
The structure and configuration of Pharmaceutical Solution Mixing Tank Reaction Kettle Mix Tank With Agitator Stainless Steel Double Jacketed Magnetic Stirring Tank can be standardized and humanized according to the requirements of production process. In the mixing process, it can realize the feed control, discharge control, mixing control and other manual and automatic control.
Pharmaceutical Solution Mixing Tank Reaction Kettle Mix Tank With Agitator Stainless Steel Double Jacketed Magnetic Stirring Tank is composed of mixing tank body, upper and lower heads, agitator, support, transmission device, shaft seal device, etc. heating device or cooling device or metering device can also be configured according to process requirements.
stainless steel jacketed magnetic mixing tank can be used for the low viscosity solution like infusion solution ,injection solution ,eyedrop solution ,syrup solution ,oral liquid etc
stainless steel jacketed magnetic mixing tank Nozzle configuration:
The process nozzles mainly include manholes, inlets, outlets, sight glass, sight lights, vent filter, CIP (equipped with sanitary universal cleaning balls), SIP ports, sterile sampling ports, thermometers, temperature sensors, jacket inlets and outlets.(Nozzle size and opening position shall be provided according to process requirements.)
Mixing tank Characteristic:
1) Volume we can produce from 50L ---50000L.
2) Material we can use SS304 and SS316L. etc.
3) Jacket can be used different type : single full jacket ,limpet coil jacket and dimple type jacket.
4) Jacket can be used for heating and cooling .
5) Bottom mounted agitator: magnetic agitator
6) Insulation material can use mineral wool ,rock wool ,PUF etc.
7) Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor ,temperature sensor ,pressure sensor ,load cell ,PH sensor ,PO2 sensor ,safety valve,sampling valve etc.
8) Tank can be CIP/SIP online.
9) control panel :PLC /HMI automatic control or common button control .
10) inside shell mirror polish Ra<0.4um ,outside shell polish Ra<0.8um.

Components Item	Function and usage
CIP spray ball	Wash &clean tank inside surface and devices automatic ,which should connect to the CIP machine station
Vent filter	Filter air to prevent the bacteria into the tank ,also can release the tank inside pressure.
Temperature sensor (gauge)	Indicate inside tank temperature and PID temperature control with the necessary valve and fittings
Pressure sensor (gauge)	Indicate the inside tank pressure
PH sensor	Indicate the product PH data
PO2 sensor	Indicate the product Oxygen content
Level sensor (gauge)	Indicate the inside tank product level height ,there are have different models :(static) pressure type ,ultrasonic type ,radar type ,glass tube type ,plate sight glass type .
Load cell	Indicate the product weight
VFD ( inverter )	Control and adjust agitator speed
Safety valve	Release inside tank pressure to protect the tank safety
Flow meter	Indicate the solution inlet and outlet volume
Sight light	Indicate inside tank bright for watching easily
Manhole (handhole )	Charge solid product into tank ,also can be used for maintenance inside tank components.
Sampling valve	Take inside tank products sample for offline checking

Technology data :

Model Item	MPYG-50	MPYG-100	MPYG-500	MPYG-1000	MPYG-6000
Tank work volume:L	50	100	500	1000	6000
Motor power:Kw	0.18	0.37	1.1	2.2	5.5
Agitator speed :RPM	0-350 ( for the gear motor connection type ),0-600 (for direct motor connection type )
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)
