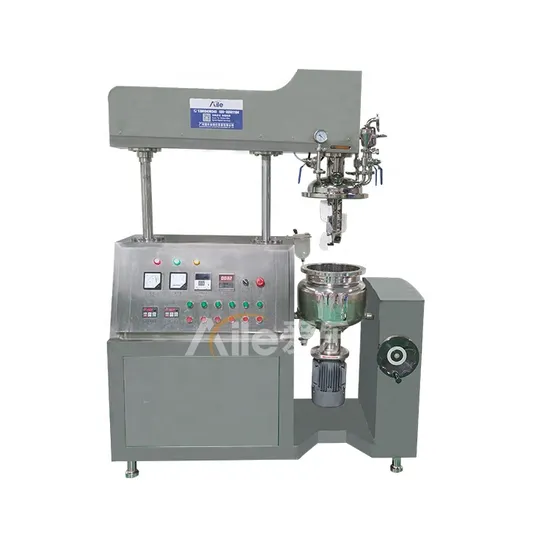

High Tech Lifting Type Laboratory Cosmetic Cream Emulsifying 50L Homogenizer Emulsifier Gel Ointment Vacuum Mixer Machine Mixing Filling

Product Description

Product Description Introduction The Cosmetic Blender Vacuum Emulsifying Lower Homogenizer Eumlsifier is consisted of water pot , oil pot , emulsifying pot, vacuum system, lifting system ( hydraulic lift ), electric control system, heating system, mixer system, operation platform. Usage It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. like facial cream, hand cream, daily chemical care products, biopharmaceutical, food, The emulsifying effect is more prominent for materials of high base viscosity and high solid content. Specification

Capacity	Homogeneous			Stir motor			Dimensions(mm)					Total power	Limit vacuum
		KW	r/min	KW	r/min	Length	Width	Height	KW	Mpa
5L	0.37	0-3000	0.18	0-63	1260	540	1600/1850	5	-0.09
10L	0.75	0-3000	0.37	0-63	130	580	1600/1950	6	-0.09
50L	3-5.5	0-3000	1.1	0-63	2600	2250	1950/2700	18	-0.09
100L	4-7.5	0-3000	1.5	0-63	2750	2380	2100/2950	32	-0.09
200L	5.5-11	0-3000	2.2	0-63	2750	2750	2350/3350	45	-0.09
300L	7.5-11	0-3000	2.2	0-63	2900	2850	2450/3500	49	-0.085
500L	11	0-3000	4	0-63	3650	3300	2850/4000	63	-0.095
1000L	15	0-3000	5.5	0-63	4200	3650	3300/4800	90	-0.09
2000L	15	0-3000	7.5	0-63	4850	4300	3800/5400	-	-0.85

Detailed images 1.Steel Tank Body The tank body is made of stainless steel, and the contact material body is made of stainless steel 316L. Polishing processing, in line with GMP requirements 2.Bottom homogenzier A high speed shear homogenizer is installed at the bottom, with a speed of 0-3000rpm per hour. Equipped with frequency control, you can set the uniform time. The homogenization function can make the product more delicate. Bottom also has heating wire;can chose electric heating or steam heating. 3.Instrument The machine is equipped with elliptical manhole, vacuum pressure gauge, suction filter, vent valve, vacuum port, air pressure port; Pump air inlet, mirror light, mirror port with scraper, spice funnel, cleaning valve port (safety sanitary pipe fitting) 4.Water and oil pot The machine is equipped with oil and water pot, which can be used in advance of other raw materials (such as glycerin); Dissolve and heat. It makes the production process easier and saves time. Company Profile VR An experienced manufacturer of aerosol equipment, perfume equipment and cosmetic equipment 1.Prodcution Expenience20+ Years 2.Factory Area: 5000m³ 3.Company person: 100+ 4.Certificate: Production license / CE / Business license / ISO9001 etc. 5.After-sales Service: Professional and quickly 6.R&D deapartment: Can design solutions for customers Why Choose Us
