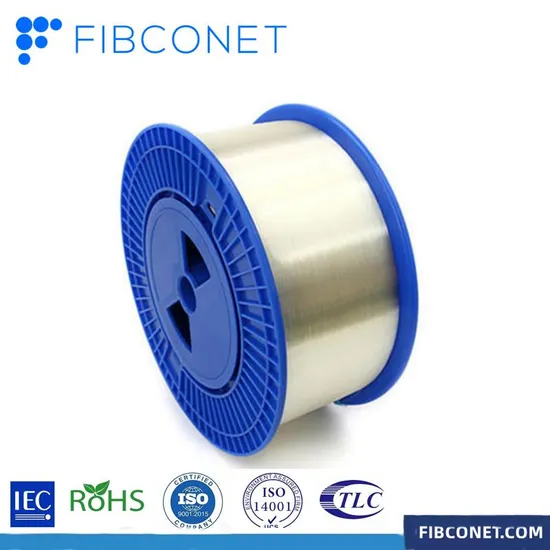

Hot Sale G654D/G657A1 2km/5km/10km Single-Mode Glass Optical Fiber

Product Description

Hot sale G654D/G657A1 2km/5km/10KM Single-Mode Glass Optical Fiber
Product Description Glass optical fibers consist of tiny strands of glass bundled within application-specific sheathing, like stainless steel, for durability and high-temperature resistance. They connect to photoelectric sensors to guide light from the sensing head to the target. These fibers operate within an impressive temperature range from -40°F to +900°F, making them suitable for communication, sensor, and measurement systems. They are also effective in harsh environments, such as corrosive and wet conditions.
Features Bend Radius: Minimum bend radius of 7.5mm for excellent anti-bending properties. Compatibility: Fully compatible with G.652 single-mode fiber for full-band (1260~1626nm) transmission. Performance: Low Polarization Mode Dispersion (PMD) for high bit-rate and long-distance transmission. Extremely low micro-bending attenuation suits all optical cable types, including ribbons. Durability: High anti-fatigue parameters ensure a long service life under small bending radii. Applications Cable Constructions: Suitable for all types. Full Band Transmission: 1260~1626nm transmission. FTTH: High-speed optical routing. Optical Cables: Ideal for small bend radius and small-size optical fiber cables and devices. L-band Applications: Supports extended wavelength needs. Product Parameters

TESTING REPORT FOR B1.3(G652D)
Optics Specifications			Result
Attenuation(dB/km)	@1310nm	≤0.34db/km	Comply
	@1383nm (after hydrogen aging)	≤0.32db/km	Comply
	@1550nm	≤0.22db/km	Comply
	@1625nm	≤0.24db/km	Comply
Dispersion	@1285nm~1340nm	-3.0~3.0ps/(nm*km)	Comply
	@1550nm	≤18ps/(nm*km)	Comply
	@1625nm	≤22ps/(nm*km)	Comply
Zero-Dispersion wavelength		1300~1324nm
Zero-Dispersion slope		≤0.092ps/(nm2*km)
Mode field diameter @ 1310nm		9.2±0.4μm
Mode field diameter @ 1550nm		10.4±0.8μm
PMD	Max. value for fiber on the reel	0.2ps/km 1/2	Comply
	Max. Designed value for link	0.08ps/km 1/2	Comply
Cable cutoff wavelength,λ cc		≤1260nm	Comply
Effective group index(Neff)@1310nm		1.4675	Comply
Effective group index(Neff)@1550nm		1.4680	Comply
Macro-bend loss(Φ60mm,100 turns)@1550nm		≤0.05db	Comply
Back scatter characteristic(@1310nm&1550nm)			Result
Point discontinuity		≤0.05db	Comply
Attenuation uniformity		≤0.05db/km	Comply
Attenuation coefficient difference for bi-directional measurement		≤0.05db/km	Comply
Geometrical characteristics			Result
Cladding diameter		125±1μm	Comply
Cladding non-circularity		≤1%	Comply
Core/cladding concentricity error		≤0.4μm	Comply
Fiber diameter with coating(uncolored)		245±5μm	Comply
Cladding/coating concentricity error		≤12.0μm	Comply
Curl		≥4m	Comply
Mechanical characteristic			Result
Proof test		0.69GPa	Comply
Proof test		1.4N	Comply
Dynamic stress corrosion susceptibility parameter(typical value)		≥20	Comply
Environmental characteristics(@1310nm&1550nm)			Result
Temperature induced attenuation(-60~+85ºC)		≤0.5dB/km	Comply
Dry heat induced attenuation(85±2ºC,30days)		≤0.5dB/km	Comply
Water immersion induced attenuation(23±2ºC,30days)		≤0.5dB/km	Comply
Damp heat induced attenuation(85±2ºC,RH85%,30days)		≤0.5dB/km	Comply
