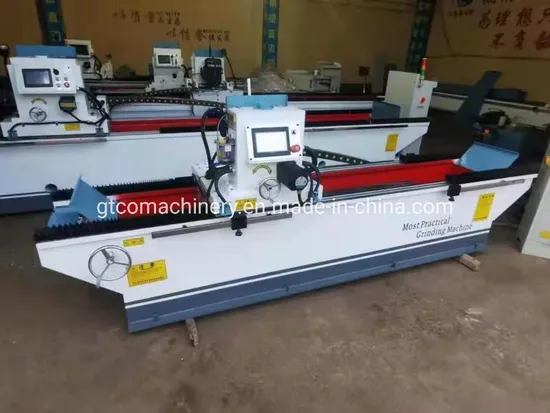

Metal Blade Knife Sharpening Machine with Adjustable Working Table

Product Description

metal blade knife sharpening machine with adjustable working table
Product Description

1.This machine mainly grinds various long knives, such as veneer peeling machine knives, Granulator knife, paper cutters, shearing blades, slicing knives, etc.
2. Max Working length is 1500-7000mm.3. The body is designed as a gantry body, with high-quality steel welds, stress relief to eliminate internal stress. The machine body has high strength and good rigidity. There is no contraction in the center of the main body. The steel thickness is 10 or 12 mm.
4. The grinding head adopts a special motor. The axial clearance can be adjusted, the transmission is stable, the life is long, and the precision is high. The vertical movement of the grinding head adopts a ball screw to ensure accuracy.
5. The worktable adopts electromagnetic chuck. And it is very convenient to clamp the knife. It is easy to adjust the angle of the worktable through the worm gear.
6. The guide rail adopts a linear guide rail to ensure the smooth horizontal movement of the grinding head. The linear guide uses TAIWAN HIWIN
7. This machine uses an inverter. The horizontal and vertical speed of the grinding head can be easily adjusted.
8. The working accuracy of the machine is 0.01mm
Product Parameters

Model	GTMD1400	GTMD2800	GTMD2000
Max. grinding length(mm)	1500	2800	2000
Tilting range of working table	90	90	90
Grinding head motor power(kw)	4	4	4
Overall dimensions(mm)	3250*1200*1000	4500*1200*1100	4000*1200*1100
Weight(kg)	2000	2400	2200
Knife grinding method	Electromagnetic	Electromagnetic	Electromagnetic
Grinding Accuracy(mm)	0.01	0.01	0.01

Detailed Photos
