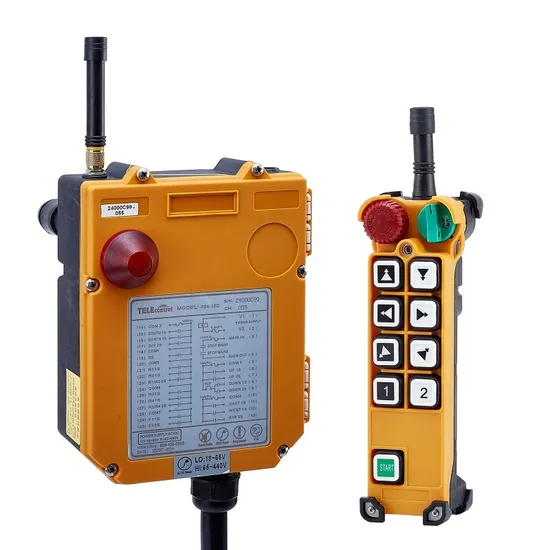

Telecontrol Uting F24-8d Double Speed Push Buttons Radio Remote Control
Basic Info.
Model NO.
F24-8D
Certification
CE, FCC, ISO9001, RoHS
Code Type
Fixed Code, Learning Code
Color
Red
Encode Mode
NEC
Frequency
433.92MHz
Material
Plastic
Transmission Distance
80-100m
Type
Wireless
Universal
Universal
Voltage
12V, 18-440V
Transport Package
Cartoon
Specification
48*25*15CM
Trademark
Telecontrol
Origin
China
HS Code
8526920090
Production Capacity
100000PCS/Year
Product Description
Telecontrol Uting F24-8D 8Double Speed Wireless Industrial Crane Radio Remote ControlProduct Specifications : 12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
24-48V UHF : The Receiver power supply 24-48V AC DC . Frequency UHF 425~446MHz . Arrow buttons
100-440V UHF : The Receiver power supply 100-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons F24-8D Function Characteristic : 9 operation buttons (8 double-speed buttons+ 1 START)
2. 1 standard mushroom-head rotating emergency stop button
3. 15 control contactors
4. With battery voltage warning device, and the power supply will be cut off during low power.
5. Safe switch key is to prevent from the unauthorized user.
6. Program the button function by computer
| F24-8D Transmitter Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF: 425-446 MHz | ||||||
| Transmitter power | ≤10dBm | ||||||
| Transmitter power supply | 2 AA alkaline batteries (not included) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Control distance | up to 100 meters (it is available to customized long distance up to 200m) | ||||||
| Size | 186x61x51mm | ||||||
| Weight | 265g (without battery) | ||||||
| F24-8D Receiver Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF: 425-446 MHz | ||||||
| Receiver sensitivity | -110dBm | ||||||
| Receiver power supply | 48/220/380V (optional) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Cable length | 1.65m (Other length can be customized) | ||||||
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) | ||||||
| Size | 210x162x107mm | ||||||
| Weight | 1220g | ||||||
